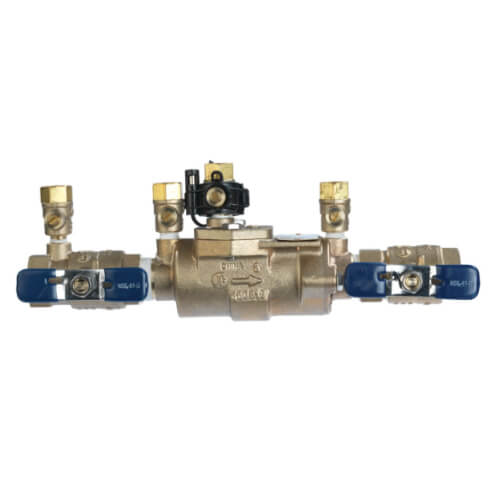

3/4" LF850-QT-FZ Lead Free Double Check Valve Assembly w/ Freeze Sensor Connectivity

This 3/4" small diameter lead free double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a lead free body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats. The double check valve includes a freeze sensor for use with SentryPlus Alert® technology to signal when ambient temperature approaches the freeze threshold. Activated through an add-on connection kit, the sensor also triggers freeze alerts to facility personnel. Sensor activation requires purchase of an activation kit which can be connected to existing building and irrigation management systems.

Specifications:

• Body Material: Lead Free Copper Silicon Alloy
• Inlet Connection Size: 3/4"
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Lead Free: Yes
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-PSI: 175
• Outlet Connection Size: 3/4"
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPT
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Series: LF850 Small
