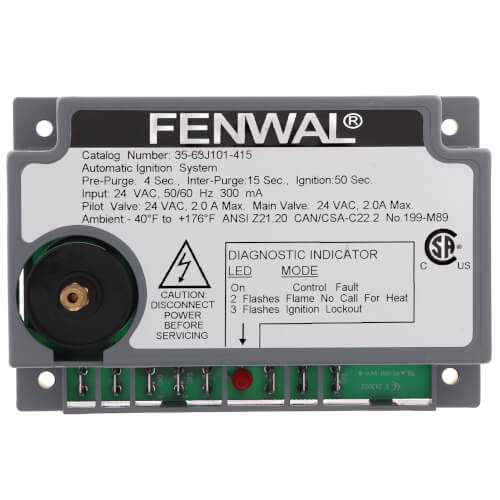

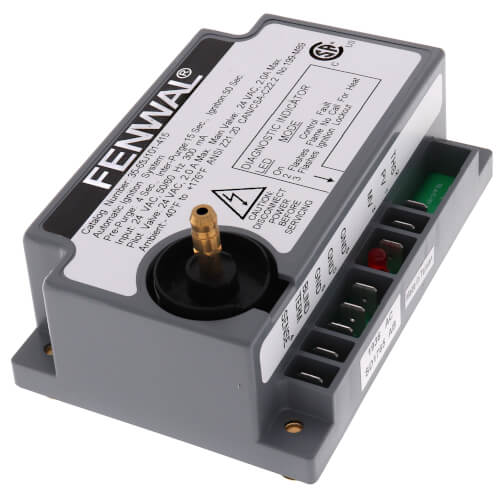

Intermittent Pilot Ignition Control, 24v w/ 4 sec. Prepurge (50 sec. TFI)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
35-63J101-415 has been discontinued
Discontinued November 17, 2023
This product was discontinued by the manufacturer.
MANUALS (1)
This item replaces: 35-63J900-415
Suggested Alternative:
All-Spark Universal Intermittent Pilot/Direct Spark 24V Ignition Module
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
Intermittent Pilot
24V
-40°F to 176°F
Natural Gas, Propane, Manufactured
Description
–
The Fenwal 35-63 "J" Series provides all the features, performance
and reliability of our 35-63 Series 24 VAC intermittent pilot
(spark-to-pilot) ignition control in a Johnson Controls format.
Designed to directly replace the Johnson G77x Series, the Fenwal
35-63J matches the footprint, mounting hole pattern, and wiring
connections of the discontinued Johnson series.
Features
Features
- Drop-in replacement for JCI G77x series
- Safe Start and full-time flame sensing
- Custom prepurge and interpurge timings
- Multiple trials for ignition
- Diagnostic LED using Fenwal fault codes
- Three ground terminals for ease of wiring
- Remote or local flame sense options
- Automatic 5 min or 1 hour reset after lockout options
Specs
–
| Product Type: | Ignition Control |
|---|---|
| Ignition Type: | Intermittent Pilot |
| Voltage: | 24V |
| Temperature Range (F): | -40°F to 176°F |
| Flame Sense: | 0.3 Microampere |
| Fuel Type: | Natural Gas Propane Manufactured |
