24,000 BTU, R-32, Floating Air Select Wall Mounted Ductless Single Zone AC/Heat Pump - Package
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Lift Gate
Product Highlights
Description
In compliance with the AIM Act of 2020, this product is designed for use with A2L appliances only. This product is NOT to be used in the installation or repair of an R410A appliances.
Note: As of January 1, 2023 the US Department of Energy released a new SEER2 standard that provides manufacturers guidance in measuring the efficiency of their HVAC units.
The US Department of Energy divided the country into 3 regions (North, Southeast, and Southwest) and established energy efficient standards for each.
Please check the SEER2 site to ensure efficiency compliance for your region.

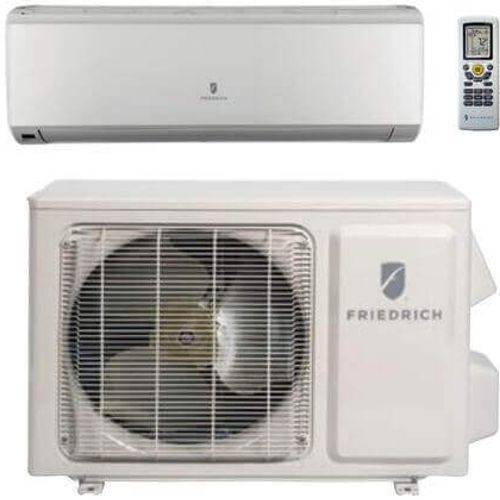

**Includes Indoor Model FAHFW24A3A and Outdoor Model FSHSR24B3B
Excellent efficiency and outstanding quality make Select a truly exceptional value line
Features:
- Inverter technology is more energy efficient and can self-adjust capacity to match cooling needs
- Multiple operating modes including: auto, cool, dry, fan only and heat
- TURBO mode operates the unit at maximum performance to quickly bring the room to set temperature
- 4 fan speeds heating or cooling: high, medium, low, "quiet", plus auto-fan
- Continuous 'Air Sweep' up & down
- LCD remote
- 24-hour timer and sleep timer
- Indoor unit will briefly display set or room temperature
- Auto-restart after power interruptions
- Auto-shut flaps close when unit is off for a sleek appearance
- Washable antimicrobial air filters
- 115V/230V models will provide cooling in outdoor temperatures down to 0 F
Specs
| Connection Type: | Flare |
|---|---|
| Voltage: | 208/230V |
| SEER2: | 18 |
| Energy Star Rated: | No |
| Refrigerant Type: | R-32 |
| Product Type: | Bundle |
| HSPF2: | 8.5 |
| EER2: | 10.5 |
| Heating Capacity (BTU): | 25000 |
| Cooling Capacity (BTU): | 24000 |
| Moisture Removal: | 4.6 |
| Number of Zones: | 1 |
| Suction Line: | 5/8" |
| Liquid Line: | 3/8" |
| Application: | Heat Pump |
