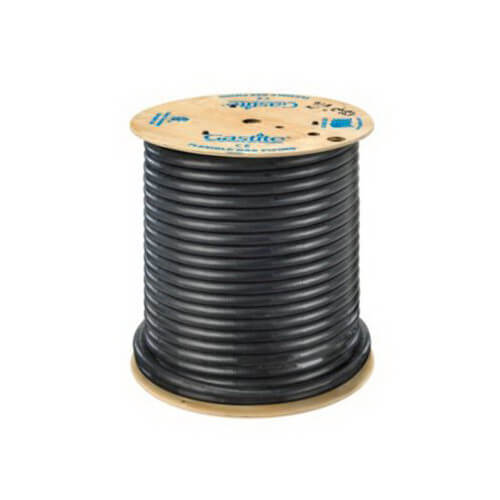

FlashShield™ is metallically shielded flexible gas piping system complying with ANSI LC 1 "Fuel Gas Piping Systems Using CSST" and listed with CSA® , ICC and IAPMO. The FlashShield system is also listed to protective jacket standards, ICC-ES PMG LC1024, and LC1027. Manufacturing materials are: ASTM A240 type 300 corrugated stainless steel tubing with a minimum wall thickness of .010", a metallically shielded layer between two layers of semi-conductive jacketing of UV resistant polymer meeting the requirements of ASTM E 84 for flame spread and smoke density. All mechanical tube fittings are SAE CA360 brass incorporating double wall flare sealing and shield-to-fitting electrical conductivity, and Jacket-LockTM design feature
Features:
- Metallic shield layer provides protection from electrical damage
- Two layers semi-conductive polymer jacket
- Pre-Marked by the Foot
- Lightweight & Flexible
- 100% Factory Pressure Tested
Listings:
- CSA Certificate 1009875
- ICC-ES Report No. PMG 1066 and PMG 1155
- IAPMO: File No. C-3250 and Report No. 0239
Technical Data:
- Max. Approved Operating Pressure 5 psi
- Tubing Minimum Burst Pressure 1,500 psi
- Operating Temperature Range -35°F to 160°F
- Tubing Melting Point 2400°F
- Jacket Melting Point 205°F
- Tubing Material ASTM A240 Type 304 SS
- Jacket Material UV Resistant Semi
- Conductive Polymer
- Metallic Shield Material AL1145 or AL3003
