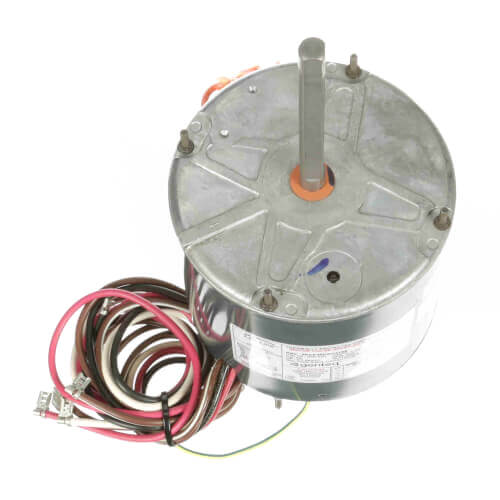

2 Speed Condenser Fan & Heat Pump Motor 1/3-1/6 HP, 825 RPM (208-230V)
Hover image to zoom

2 Speed Condenser Fan & Heat Pump Motor 1/3-1/6 HP, 825 RPM (208-230V)

SKU:
3469
Rating:
(0)
Q&A:
(0)
2 Speed Condenser Fan & Heat Pump Motor 1/3-1/6 HP, 825 RPM (208-230V)
Hover image to zoom
$269.98 each
Backorder
Backorder
Get it Tue, Apr 2 - Tue, Apr 30
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
208/230v
RPM icon
825 RPM
Rotation icon
Reversible
Horse Power icon
1/3 - 1/6, 1/6, 1/4, 1/3, 1/5 HP
Mount icon
Extended Studs
Amperage icon
2.2 Amps

Description

Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with “belly band” or extended clamp screw mounting.

Features:
  • Ball bearings
  • Water slinger on shaft
  • Class B insulation
  • Single phase
  • Automatic overload
  • Permanent split capacitor
  • Designed for 370 Volt capacitor, not included
  • Different capacitor/speed combinations to fit various HP applications
  • Holes in motor shell for mounting brackets
  • Extended clampbolts or studs for mounting

Specs

Motor:

Permanent Split Capacitor

RPM:

825

Type:

Permanent Split Capacitor

Voltage:

208/230v

Horse Power:

1/3 - 1/6

1/6

1/4

1/3

1/5

Duty:

Continuous Air Over

Rotation:

Reversible

Mount:

Extended Studs

Amperage:

2.2

Bearings:

Ball

Speeds:

2

Poles:

8

Enclosure Type:

Totally Enclosed Air Over (TEAO)

Phase:

1

Insulation Class:

B

Overload Protection:

Thermally

Frame:

48

Max Ambient Temp (°F):

104°F

Motor Orientation:

Any

Approvals:

CSA

UL
