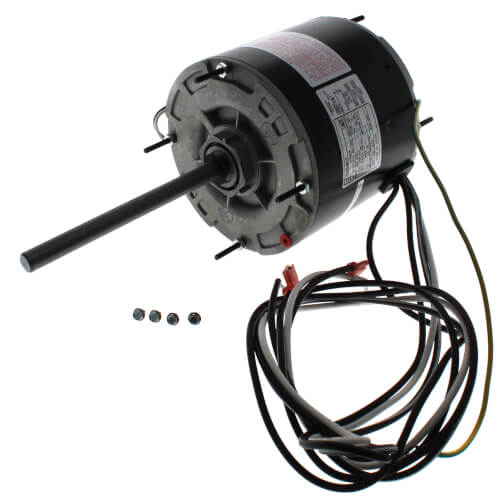

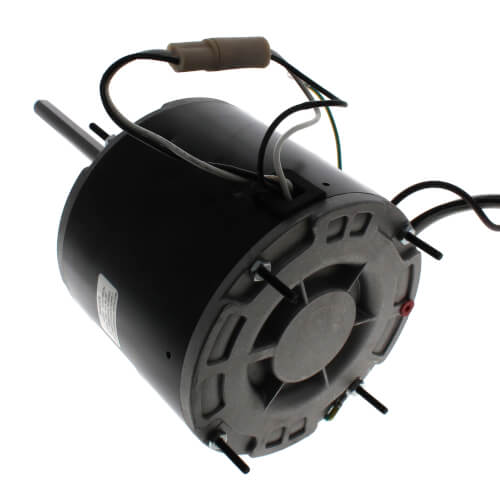

5-5/8" PSC Condenser Fan Motor (1/4-1/8 HP, 208-230V, 825 RPM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$159.38 each
In Stock
Get 6 Tue, Jul 7
Order by today, receive Tuesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
825 RPM
Reversible
1/4-1/8 HP
Description
–
Note: This is an aftermarket replacement part, please confirm compatibility with your original manufacturer part number
Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with “belly band” or extended clamp screw mounting.
Features
Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with “belly band” or extended clamp screw mounting.
Features
- Replaces Rheem and Hundreds of Other Condenser Motors!
- Permanent split capacitor
- Mounts by belly band, thru bolts or Rheem mounting holes with screws
- Single speed
- Totally enclosed
- Single phase
- 48 Frame
- 60 Hertz
- Ball bearings
- Electrically reversible
- All angle mounting
- Automatic overload
- H.P. 1/4-1/5-1/6-1/8
- Speeds 1
- Amps 1.8-2.0
- Rotation Reversible
- Capacitor POC7.5
- RPM 825
- Bearings Ball
- Diameter (In.) 5-5/8
- Enclosure Totally Enclosed
- Mounting Stud
- Service Factor 1.0
- Shaft Length (In.) 6-13/16
- Motor Type Permanent Split Capacitor
- Frame 48
- Overload Protection Automatic
- Phase 1
- Shaft Diameter (In.) 1/2
- Shafts 1
- Hertz 60
- Shaft Dimension (In.) 1/2 x 6-1/2
- Length Less Shaft (In.) 4-1/8
- Voltage 208 - 230
- Capacitor Required 7.5MFD/370V
- Weight (lbs.) 14.6
Specs
–
| Horse Power: | 1/4-1/8 |
|---|---|
| RPM: | 825 |
| Enclosure Type: | Totally Enclosed |
| Bearings: | Ball |
| Rotation: | Reversible |
| Speeds: | 1 |
| Voltage: | 208/230V |
