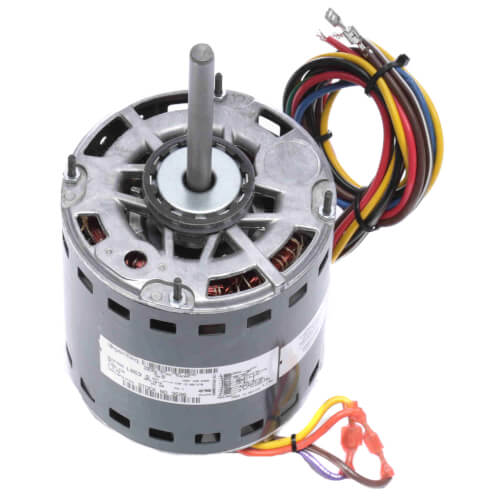

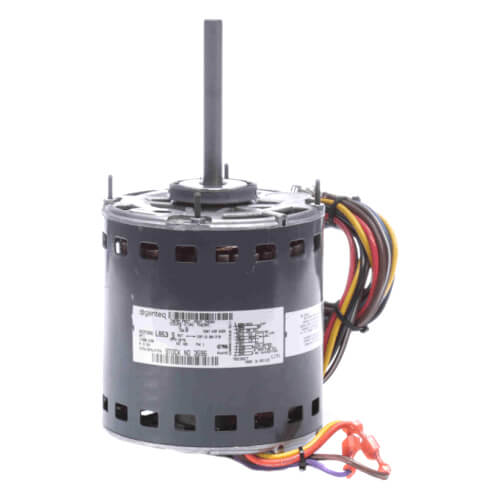

5-1/2" 2 Speed Direct Drive Furnace & Central A/C Motor 1 HP, 1075 RPM (208-230V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$379.57 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
1075 RPM
Reversible
1 HP
Resilient Rings
5.58 Amps
Description
–
Designed for continuous air over applications, such as furnace blowers or central air handling units
with single shaft requirements.
Features:
Features:
- Energy Saver Plus design (u)
- Reversible rotation
- Mounting holes in shell for capacitor bracket
- Designed for 370 Volt capacitor (not furnished)
- 4" shaft extension
- Extended clamp screws on shaft end with a ring kit provided
- Ring kit allows both 2 1/4" and 2 1/2" resilient ring mounting
- Automatic thermal overload protection
Specs
–
| Motor: | Permanent Split Capacitor |
|---|---|
| RPM: | 1075 |
| Horse Power: | 1 |
| Type: | Permanent Split Capacitor |
| Voltage: | 208/230V |
| Duty: | Continuous Air Over |
| Rotation: | Reversible |
| Bearings: | Ball |
| Mount: | Resilient Rings |
| Speeds: | 3 |
| Amperage: | 5.58 |
| Enclosure Type: | Open Air Over |
| Poles: | 6 |
| Phase: | 1 |
| Overload Protection: | Thermally |
| Insulation Class: | B |
| Frame: | 48 |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Any |
| Approvals: | UL CSA |
