Product Highlights
Description
Specs
| Material: | Cast Iron |
|---|---|
| Amperage: | 1.7 |
| Application: | Heating |
| Voltage: | 115V |
| Max Pressure (PSI): | 145 |
| Type: | 1-Speed Pump |
| Horse Power: | 1/12 |
| Flow Range (GPM): | 0-28 |
| Max Flow (GPM): | 28 |
| Head Range (ft.): | 0-30 |
| Max Head (Ft): | 30 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 2450 |
| Temperature Range (F): | 36°F - 230°F |
| Connection Size: | 1" 3/4" 1-1/4" 1-1/2" |
| Connection Type: | Flanged x Flanged |
Questions?
1 Replacement Part
Need help finding a replacement part?
Product Reviews
Great prices and fast delivery.
I would recommend SupplyHouse.com
I would Definitely buy from supply house again!
Long time favorite
Rock solid pumps.
Great product
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
UP26-96F solar panel pump
Great buy
i would buy this product agian and agian
Hot water circ. pump
Product Q&A
15 QuestionsQ: Does this pump not include the power cord? If not, where do I obtain it?
Asked by Jerry 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffThere is no power cord. This pump would be hard wired for power.
Q: Can I get it with the connection for the bolts in line with the motor.?
Asked by William 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe flanges and bolts are sold separately, as it depends on the size of the piping that the pump is being connected to. This pump has a standard flange connection and has separate flanges available from 3/4" to 1-1/2" so that this can meet the needs of multiple scenarios.
Q: WHAT MATERIAL IS THE IMPELLAR MADE OUT OF ON THIS PUMP
Asked by CHUCK 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe impeller is made out of composite, PES as per the submittal sheet from the manufacturer.
Q: Will a UP26-96F replace a UPS15-58pc ok.with no problems?
Asked by Ray 11 years ago
Add your answer
Verified Reply- The direct replacement for ups15-58 is sku # 59896341
Verified Reply- SupplyHouse StaffThe UPS15-58FC is a 3 speed pump where as the UP26-96F is a single speed. However the two also have different pump curves so as the UPS15-58FC is still offered that would be the best one to work with.
Q: my pump of the same # is 230 volts.It is a up 26-96 f. Is that one available or do I just have to wire it for 120 v.?
Asked by Earl 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe part number for the 230 volt version of the UP26-96F is sku 52722338 which is on the website. Be sure to purchase the correct version of the pump for the voltage that is required.
Q: I have an existing pump P/N 52722355 P1 PC:3017 What would be the replace part number and what HP is it?
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe 52722355 circulator is actually still available from Grundfos (see link below). It is rated at 1/6 HP. http://www.pexsupply.com/Grundfos-52722355-UP26-99F-Circulator-Pump-1-6-HP-115-volt-5580000-p
Q: Can I replace my old B&G 100 series 1/12 HP with the UP26-96F and get the same results?
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe UP26-96F will provide higher GPM and head capabilities unless your system's flow rate is above around 20 GPM.
Q: which pump would replace a ARMflo E series Part #180210-803, motor info: 2/5HP/3300/1/60/240/2.3A ?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffWe can't reference that model number, but this pump would work as long as it meets the same GPM and head pressure ratings as the the existing pump. The flange-to-flange sizing may also differ.
Q: Does this pump have a timer I can set to have the pump come on certain times of the day? If not how can I add an accessory to do that>
Asked by Larry 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, the part number for the Grundfos timer is 505474
No it does not have a timer. It works off of the thermostat. Do not know if you could put a timer on it.

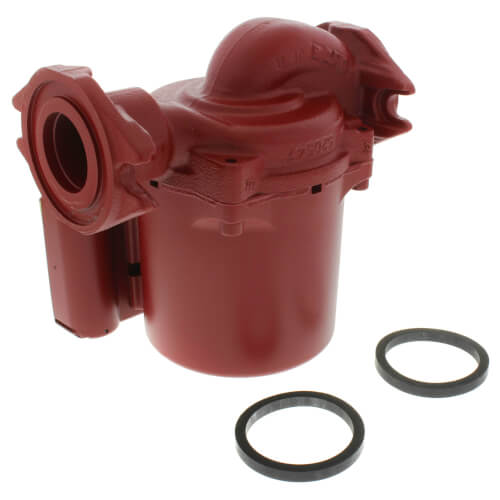

Q: Sorry if I missed this, but does this new pump come complete with two (2) new flange gaskets? Or do I need to buy them separately?
Asked by Tom K. 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it comes with two rubber flange gaskets (but the flanges must be ordered separately).
