Description

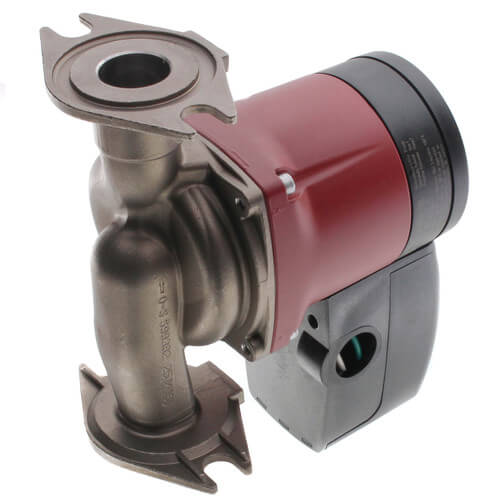

NOTE: Image depicts ALPHA-15-55F/LC model

Grundfos is proud to introduce the next generation of energy efficient circulators - the Grundfos ALPHA. By incorporating a permanent magnet motor design, power consumption is now reduced by 50%. The Grundfos ALPHA adapts to the variable demands of the system without sacrificing comfort. Using the AUTOADAPT feature, the Grundfos ALPHA will analyze the system and adjust to meet your heating demands.

Features:
  • AUTOADAPT measures system changes automatically and maximizes energy savings
  • Easy-to-use operation
  • Select a mode with the touch of a button
  • Easy-to-read LED display shows flow indication and power consumption
  • Simple plug connections
  • No wiring required
  • Terminal box for conduit connection applications

Hide Description
Specs
Material:

Stainless Steel

Application:

Heating

Flow Range (GPM):

0-21

Max Flow (GPM):

21

Head Range (ft.):

0-19

Max Head (Ft):

19

Type:

Var. Speed Pump

Max Pressure (PSI):

150

Phase:

1

Voltage:

115v

Amperage:

0.65

Hertz:

60

Temperature Range (F):

36°F - 230°F

Connection Type:

Flanged

Connection Size:

3/4" 1" 1-1/4" 1-1/2"

×
