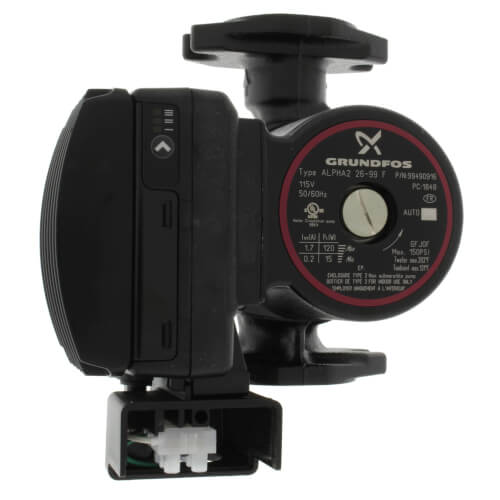

ALPHA2 26-99 Cast Iron Circulator Pump w/ Built-in Non-Return Valve
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$846.00 each
In Stock
Get 16 Tomorrow, Jul 3
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
Flanged x Flanged Connection
Cast Iron
125 Watts
Description
–
The Grundfos ALPHA2 26-99 is a medium sized, energy efficiency circulator fitted with a permanent magnet motor (ECM) and frequency converter. Featuring eight different operating modes including constant pressure AUTOADAPT and proportional pressure AUTOADAPT, the ALPHA2 26-99 is the perfect fit for any heating application.
AUTOADAPT functionality enables the ALPHA2 26-99 to control operation automatically within a defined performance range. When set in proportional pressure AUTOADAPT or constant pressure AUTOADAPT, the pump will automatically analyze the heating system, find the optimum system curve and duty point and continue to adjust its operation to changes in demand. A magnetite resistant design, robust ceramic shaft and stainless-steel bearing plate ensure that the ALPHA2 26-99 reliably delivers the optimal system flow at the lowest possible energy consumption.
Features:Magnetite resistant design protects the pump from harmful iron oxide found in heating systems
High efficiency pump design and controls reduce energy consumption by up to 85%
60 [mNm] starting torque clears pump of system debris and sediment
Designed with trusted ECM technology which has been used by Grundfos for more than 16 years
System and pump protection warning and alarm indicators
LED light indicators for pump settings and alarms
Easy to use push button control settings
AUTOADAPT functionality enables the ALPHA2 26-99 to control operation automatically within a defined performance range. When set in proportional pressure AUTOADAPT or constant pressure AUTOADAPT, the pump will automatically analyze the heating system, find the optimum system curve and duty point and continue to adjust its operation to changes in demand. A magnetite resistant design, robust ceramic shaft and stainless-steel bearing plate ensure that the ALPHA2 26-99 reliably delivers the optimal system flow at the lowest possible energy consumption.
Features:
- 8 intelligent control modes:
- Three defined proportional pressure curve settings
- Three defined constant pressure curve settings
- Constant pressure AUTOADAPT
- Proportional pressure AUTOADAPT
Specs
–
| Frequency: | 60 Hz 60 Hz 60 Hz |
|---|---|
| Material: | Cast Iron |
| Application: | Heating |
| Max Head (Ft): | 42 |
| Wattage: | 125 |
| Voltage: | 115V |
| Connection Type: | Flanged x Flanged |
| Phase: | 1 |
Contact
+
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Special Hours
8am–6:45pm
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4 out of 2 reviews
50% would recommend this product
5 star
50%
4 star
0%
3 star
50%
2 star
0%
1 star
0%
Customer Images
Showing 1-2 of 2 reviews
A bit disappointed
After recently installing several Taco ECM pumps, this unit seems noisier, doesn't have bolt indentations on the mounting flanges, and has a very poorly designed wiring junction box. It does seem to function fine though.
Jeff
Berwick, PA
1 years ago
Verified Buyer
Was this review helpful to you?
Very high quality medium smart pump
Used this product on a zone with 5-port manifold for staple-up radiant floor. I found that the 5-port manifold, combined with the total length of each circuit's tubing had too much head loss for a smaller 15-55f alpha2 to move water at a reasonable velocity. This pump can do it though. Flows were dramatically improved, aproaching >3/4 GPM flow through each circuit. This also reduced the ΔT across the zone, giving better comfort.
I like that it has two auto-adapt modes. For applications with higher head, this is the pump to get, especially for those interested in the energy saving or performance of an auto adapting pump.
nxl7930
Rochester, NY
4 years ago
Verified Buyer
