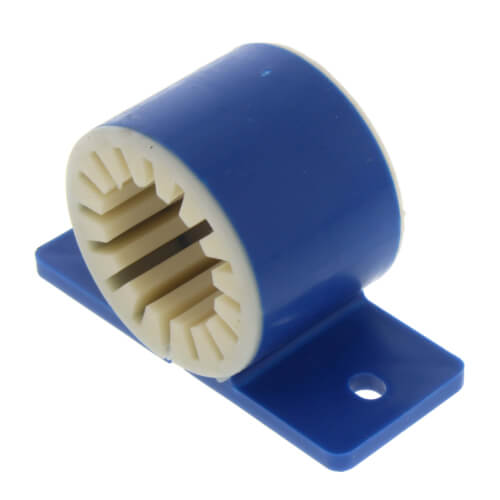

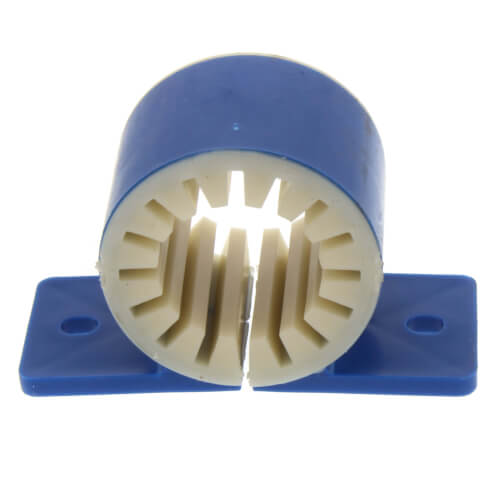

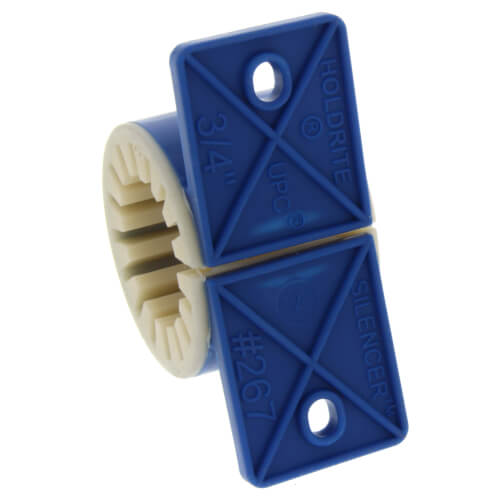

Can be used as a top mount or suspension hanger, e.g., from
a joist or cross-member, or from a HOLDRITE Stout Bracket®. These models are
used for securing and retaining tubing while providing superior acoustical isolation
between the tubing and the supporting structure. Supports 1/2", 3/4", 1" & 1-1/4"
CTS tube sizes. Supports Copper, PEX, CPVC tubing, conduit, etc. UPC listed.
- Material: Shell: Polypropylene, blue, FR UL94-V2, Isolators: TPR, natural (off-white), 40 to 45 shore A
- Temperature Range: -10 F to 140 F (suspension)
- Load rating: 25 pounds in suspension mode
- IAPMO UPC / IPC listed
- IAPMO listed, per standard PS42-2013
