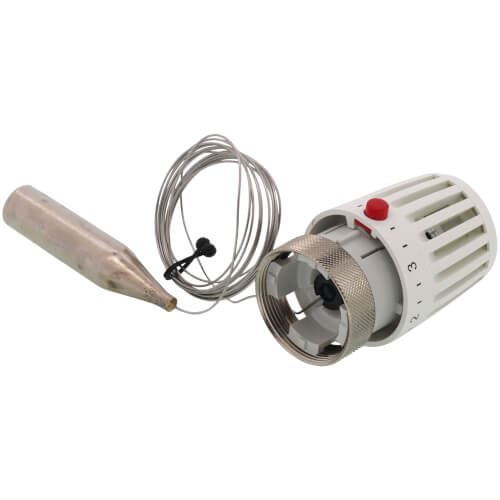

High Capacity Thermostatic Radiator Actuator - Remote Sensor
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$112.03 each
In Stock
Get 3 Thu, Jun 25
Order by today, receive Thursday
MANUALS (1)
This item replaces: T5086C1005
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
V110 Series
43°F - 79°F, 48°F - 79°F
79°F Max Temp
43°F Min Temp
Nickel Plated Bronze
1-19/32" Width
Description
–
The Honeywell Braukmann High-Capacity Thermostatic Radiator Actuator with remote sensor provides precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements. The valve seat disc is made of resilient EPDM to ensure a tight shutoff on steam or hot water systems. With a nickel-plated cast-bronze body with working parts in cartridge insert for easy service, this actuator needs no electrical connection.
Used With: V110 series valves
Valves may also be used with MV110 Electric Zone Valve Actuator.
Additional Specs:
Used With: V110 series valves
Valves may also be used with MV110 Electric Zone Valve Actuator.
Additional Specs:
- Controls include sensor, setpoint dial and valve actuator; components may be integral or connected by capillary tubes.
- All working parts are replaceable using service tool (MT100C1011) while valve remains in service, in-line, under pressure.
- Valves normally open without control mounted.
- Meet ASHRAE Standard 102-1989.
- Sensor (Integral or Remote): Remote
- Setpoint (Integral or Remote): Integral
- Capillary Length (ft): 6 ft. 8 in.
- Capillary Length (m): 2 m
- Temperature Range (F): 43 F to 79 F
- Temperature Range (C): 6 C to 26 C
- Collar Diameter (in.): 1 19/32 in.
- Collar Diameter (mm): 40 mm
- Comments: Adjustable Limits
Specs
–
| Application: | Accessory |
|---|---|
| Sensor Type: | Remote |
| Used With: | V110 Series |
| Setpoint: | Integral |
| Capillary Length: | 80" |
| Temperature Range (F): | 43°F - 79°F 48°F - 79°F |
| Max Temp (F): | 79°F |
| Min Temp (F): | 43°F |
| Material: | Nickel Plated Bronze |
| Width (Inches): | 1-19/32" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Capillary Length
CURRENT ITEM
80"
You May Also Need
Product Reviews
4 out of 3 reviews
67% would recommend this product
5 star
33%
4 star
33%
3 star
33%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
Problem with product.
Tha plastic case for the rather large sensor bulb has a lid that will not close when the bulb is in place. Poor engineering.
Rooftop
Philadelphia, PA
5 years ago
Verified Buyer
Was this review helpful to you?
Worked great
Worked exactly as intended on old steam radiator
Kevin
Kevin
9 years ago
Verified Buyer
Was this review helpful to you?
good product for what we use it for
They work great for our guesthouse room heating in our bedrooms.
Steve the Maintenace guy
Scarborough, Ontario, Canada
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: can this be mounted verital as we have the 2 inch cast iron base board raditors
Asked by glen 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it can. That should not be an issue.
Was this review helpful to you?
- Steve the Maintenace guy
These have to be mounted onto the valves that they are intended for but as far as I know they can have any orientation. we have used them horizontally out the side of a baseboard radiator. They have been mounted with the head actually pointed to the floor under and in behind the the baseboard radiator cover. This is ok as long as you have clearance for the head to rotate and move up and down off of the valve that they are mounted to. everything is mounted internally, that activates the valve with the exception of the capillary tube and bulb which needs to be mounted so that it gives the best sensing of temperature, as that is what determines the actual temperature the room comes to and activates the valve for tempurature control
