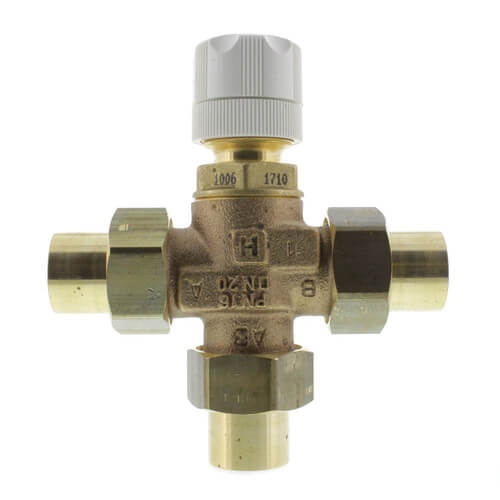

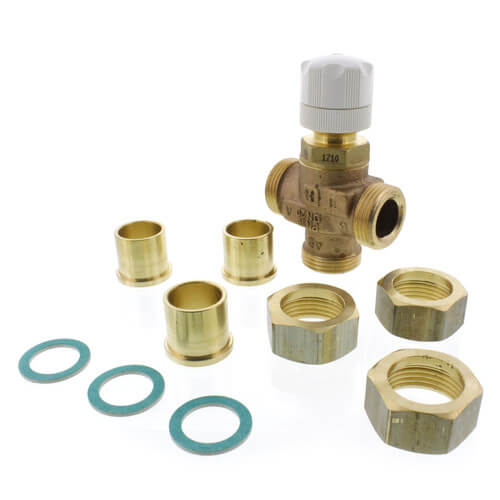

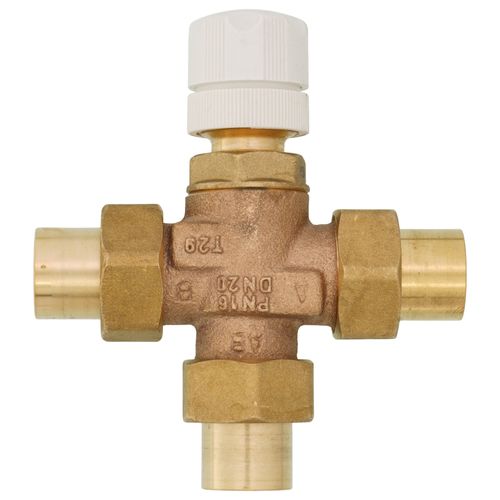

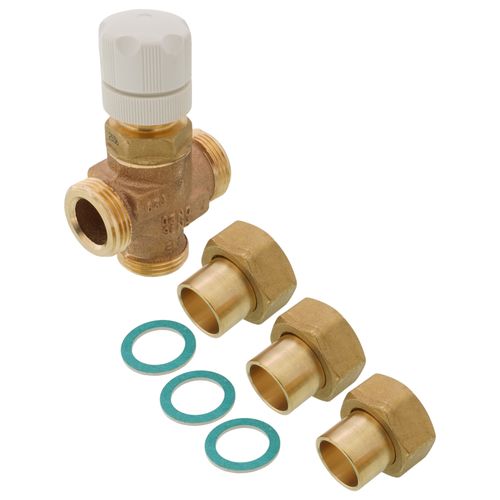

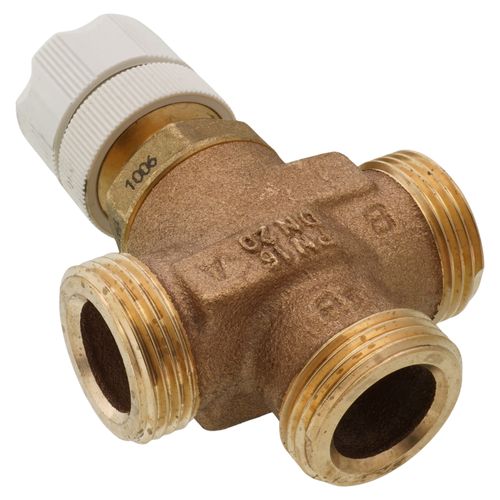

3/4" 3-Way Mixing Valve (Female Sweat Union)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (2)
Product Highlights
Description
Product Specifications:
- Application: Thermostatic mixing/diverting valve for use in hydronic heating systems. Controls loop temperature in radiant heating systems.
- Body Pattern: 3 Way
- Capacity: Standard
- Pressure Ratings (Steam (psi) ): 232 psi maximum
- Temperature Ratings (F): 248F Maximum
- Includes plastic handle for manual operation.
- Knurled ring on T100R control head for easy attachment to V135.
Specs
| Application: | Point of Source Heating |
|---|---|
| Size: | 3/4" |
| Max Pressure (PSI): | 232 |
| Connection Method: | Sweat |
| Connection Type: | C x C |
| Material: | Bronze |
| Flow Capacity (Cv): | 3.7 |
| Width: | 2-9/16" |
| Height: | 5-1/8" |
| Valve Action: | Mixing Diverting |
| Max Pressure Differential (PSI): | 17 psi |
| Body Pattern: | 3-Way |
| Max Temp (F): | 248°F |
Questions?
You May Also Need
Product Reviews
I would buy this again with restrictions
great
Old School technology that works!
Product Q&A
5 QuestionsQ: What is the temperature range for this valve?
Asked by jason 12 years ago
Add your answer
The maximum temp is 248 the min would be whatever your rated glycol freeze point is, if no glycol then obviously 32 degrees is safe low temp Sent from my iPhone
According to the literature provided the Maximum temperature rating is 120 C (248F) They sell a control with this that has two temperature ranges we use the 86 deg to 158 F control (T100R series thermostatic control sold separately)
Q: I need to run a constant temperature between 70 and 78 degrees (24/7), do you have a mixing valve that I can hook up to a hot water source and cold water source and set the range required then automatically (digital or temperature controlled)adjust the valve to acheive this range?
Asked by Charles 15 years ago
Add your answer
Verified Reply- PexSupply StaffYour cold water and hot water temperatures would have to remain consistent for a mixing valve to do this.
Q: is there a control adapted to this for modulation/ outdoor reset?
Asked by rh57 15 years ago
Add your answer
Verified Reply- PexSupply StaffNo, there is not. You would have to replace both the valve and actuator and then install an electronic controller. According to the manufacturer, you could look at the following devices: T775R2043 controller, VC7934ZZ11 valve actuator, and a VCZMS7100 3-way sweat valve.
Q: Can I use this valve to heat up my cold water using steam as my heat source?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffWe do not believe this valve will be able to do that.
Q: Does this valve actually sense the temperature and adjust for variances or just mix the hot and cold? I need a constant 120 degree supply to my floors. Thanks.
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffThe valve does not sense the temperature coming into the line, it simply mixes the hot and cold lines together to reduce the water temperature. There is a valve on the mixing valve that you manually adjust to change the temperature. Normally it is recommended to have a temperature gauge in line so that you can adjust it accurately to the temperature you need.
