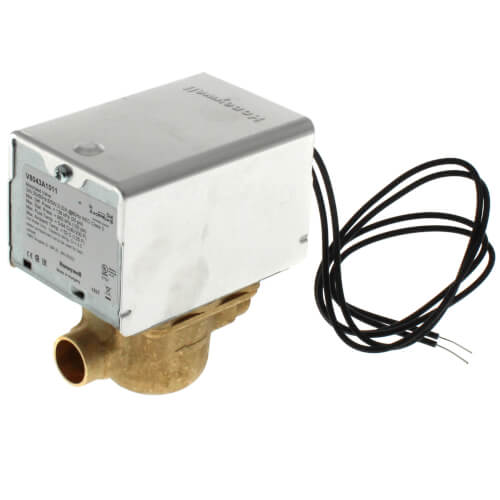

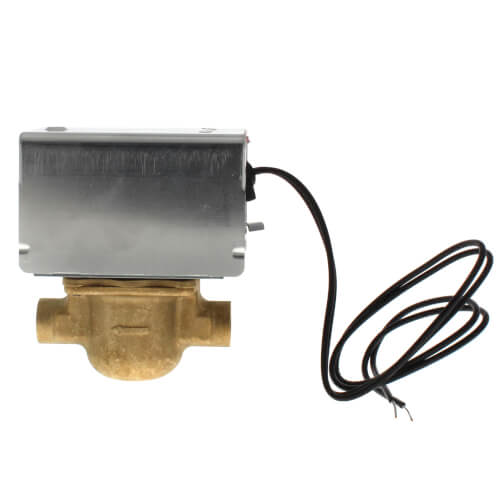

1/2" Sweat Zone Valve (18" Leads, No End Switch)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$127.40 each
In Stock
Get 16 Fri, Jun 19
Order by today, receive Friday
MANUALS (1)
This item replaces: V4043A1051
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Straight-Through, 2-Way
Sweat Connection
3.5 Cv
1/2"
24V
Normally Closed
Description
–
- Valve designed for cycling (not constantly powered on) applications.
- Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Actuator motor may be replaced without removing the valve body or draining the system.
- Description: 24V 1/2 in. Sweat Connection Low Voltage Motorized Zone Valves
- Application: Hydronic Control
- Connection Type: Sweat
- Pipe Size (inch): 1/2 in.
- Pipe Size (DN): DN15
- Body Pattern: Two-way, Straight-through
- Capacity (Cv): 3.5 Cv
- Capacity (Kv): 3 Kv
- De-energized Position: Normally Closed
- Maximum Close-off Pressure (psi): 20 psi
- Maximum Close-off Pressure (kPa): 138 kPa
- Fluid Temperature Range (F): 50 F to 200 F
- Fluid Temperature Range (C): 10 C to 93 C
- Electrical Connections (in.): 18 in. leads
- Electrical Connections (mm): 457 mm leads
- Power Consumption: 7.7 VA
- Nominal Timing (sec, min): 15 sec
- Valve Action : Spring return to close
- Maximum Ambient Temperature (F): 125 F
- Maximum Ambient Temperature (C): 52 C
- Dimensions (in.): 4 in. high x 3 1/2 in. wide x 2 3/8 in. deep
- Dimensions (mm): 102 mm high x 89 mm wide x 60 mm deep
- Type: 2 position
- Static Pressure (psi): 125 psi
- Static Pressure (kPa): 862 kPa
- Materials (Body): Brass
- Materials (Seat): Brass
- Materials (Stem): Stainless Steel
- Materials (Ball Plug): Buna-N (NBR) Rubber Ball
- Materials (Packing O-rings): EPDM rubber
- Voltage: 24 Vac
- Frequency: 60 Hz
- Frequency: 50 Hz
- Approvals, Underwriters Laboratories Inc UL Component Listed: File MH11826 Vol. 1
- Manual Opener: Yes
Specs
–
| Application: | Zoning |
|---|---|
| Size: | 1/2" |
| Flow Capacity (Cv): | 3.5 |
| Width (Inches): | 3-1/2" |
| Height: | 4" |
| Material: | Brass |
| Amperage: | 0.3 |
| Voltage: | 24V |
| Position: | Normally Closed |
| Depth (Inches): | 2-3/8" |
| End Switch: | No |
| Wiring: | 18" Leads |
| Body Pattern: | Straight-Through 2-Way |
| Hertz: | 50 60 |
| Max Ambient Temp (°F): | 125°F |
| Max Close-Off PSI: | 20 psi |
| Temperature Range (F): | 50°F - 200°F |
| Min Temp (F): | 50°F |
| Max Temp (F): | 200°F |
| Connection Type: | Sweat |
| Valve Action: | Spring Return to Close |
| Power Consumption: | 7.7 VA |
| Nominal Timing: | 15 Seconds |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Flow Capacity (Cv)
Voltage
Position
End Switch
CURRENT ITEM
1/2"
3.5
24V
Normally Closed
No
3 Replacement Parts
Replacement head for V8043A, (24v, 60 Hz)
SKU: 40003916-021
Honeywell Home2 Way Powerhead Conversion Kit (Water)
SKU: 40003918-006
Honeywell Home
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.5 out of 2 reviews
100% would recommend this product
5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Yup, they worked.
Had these installed, they work perfectly. They were the same product that the HVAC company would have charged me way more if I'd ordered through them. They arrived well packaged and on time.
Hot now
Seattle WA
8 years ago
Verified Buyer
Was this review helpful to you?
Great replacement
Quick delivery and quality product. Would buy from them again
ggatrs
Minneapolis MN
9 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Is the dump zone valve the same as a normal zone valve
Asked by Jimbo 15 years ago
Add your answer
Verified Reply- PexSupply StaffNo, they are not the same. This is a 2-way zone valve. "Dump zone" valves are 3-way.
