1/2" Inverted Flare Connection, 24V
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way, Straight-Through
Inverted Flare Connection
3.5 Cv
1/2"
24V
Normally Closed
Description
–

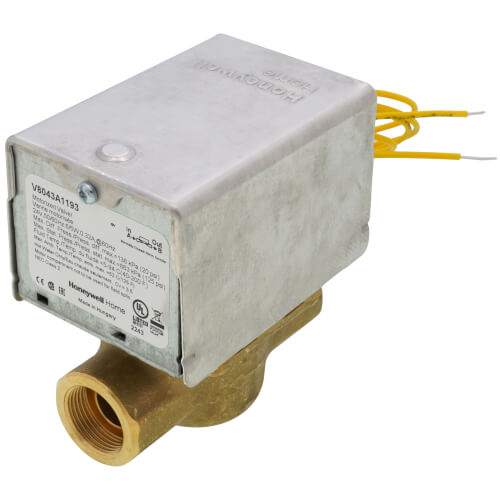

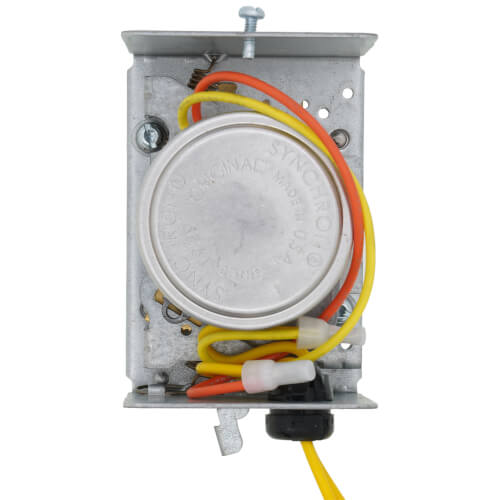

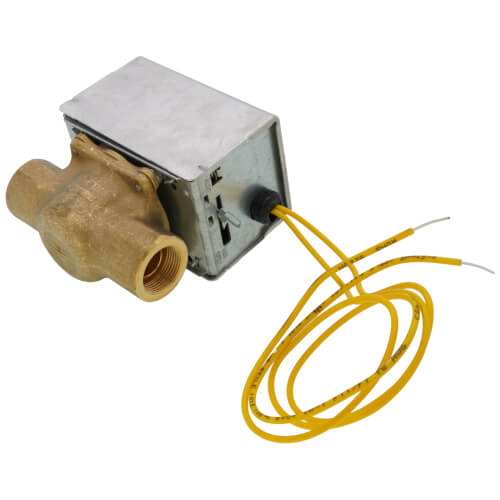

24V 1/2 in. Inverted Flare Connection Normally Closed Zone Valve with 3.5 Cv capacity and 18 in. leads.
Overview:
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Features:
Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
All models may be installed without disassembling the valve.
Compact construction for easy installation.
Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
Actuator motor may be replaced without removing the valve body or draining the system.
*Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
Overview:
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Features:
*Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
Specs
–
| Application: | Hydronic Control |
|---|---|
| Body Pattern: | 2-Way Straight-Through |
| Connection Type: | Inverted Flare |
| Pipe Size: | 1/2" |
| Flow Capacity (Cv): | 3.5 |
| Max Close-Off PSI: | 20 psi |
| Max Ambient Temp (°F): | 125°F |
| Voltage: | 24V |
| Position: | Normally Closed |
| Size: | 1/2" |
| End Switch: | No |
