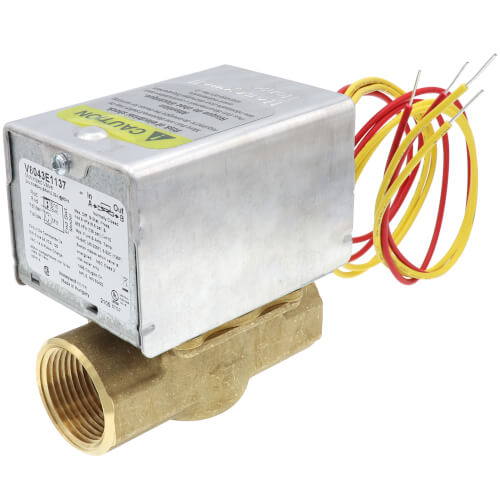

1" NPT Motorized Zone Valve (Connection = 18" Leads)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$165.91 each
In Stock
Get 18 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Straight-Through, 2-Way
Threaded Connection
10 Cv
1"
24V
Normally Closed
Description
–
Note: Valve designed for cycling (not constantly powered on) applications. Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Features:
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Features:
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Actuator motor may be replaced without removing the valve body or draining the system.
- Power Consumption: 7.7 VA
- Static Pressure (psi): 125 psi
- Nominal Timing (sec, min): 15 sec
- Valve Action: Spring return to close
- Type: 2 position
- Auxiliary End Switch: SPST
- End Switch Rating: 50 VA pilot duty @ 24 V
- End Switch Rating: 4.4 A running with 26.4 A inrush @ 120 V
- Materials (Body): Brass
- Materials (Seat): Brass
- Materials (Stem): Stainless Steel
- Materials (Ball Plug): Buna-N (NBR) Rubber Ball
- Materials (Packing O-rings): EPDM rubber
- Frequency : 60 Hz; 50 Hz
Specs
–
| Application: | Zoning |
|---|---|
| Size: | 1" |
| Material: | Brass |
| Connection Type: | Threaded |
| Body Pattern: | Straight-Through 2-Way |
| Voltage: | 24V |
| Position: | Normally Closed |
| Height: | 4" |
| Width (Inches): | 3-23/32" |
| Depth (Inches): | 2-3/8" |
| Flow Capacity (Cv): | 10 |
| Max Close-Off PSI: | 6.5 psi |
| Min Temp (F): | 50°F |
| Temperature Range (F): | 50°F - 200°F |
| Max Temp (F): | 200°F |
| Max Ambient Temp (°F): | 125°F |
| Wiring: | 18" Leads |
| Hertz: | 50 60 |
| Valve Action: | Spring Return to Close |
| Power Consumption: | 7.7 VA |
| Static Pressure: | 125 psi |
| Nominal Timing: | 15 Seconds |
| End Switch: | Yes |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Size
Connection Type
Body Pattern
Voltage
CURRENT ITEM
Zoning
1"
Threaded
Straight-Through
2-Way
2-Way
24V
You May Also Need
3 Replacement Parts
Replacement Head for V8043E Zone Valves
SKU: 40003916-026
Honeywell Home2 Way Powerhead Conversion Kit (Water)
SKU: 40003918-006
Honeywell Home
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 4 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
Will Use These Again
Finding the datasheet that has this exact part on it is challenging. After using a couple of these valves in my hydronic heating system I believe these are the least restrictive valve (least pressure drop for a given flow) which is readily available. I had originally planned to use a Taco valve, but these were in stock so they're what I used, and I'm glad I did.
Scott
Santa Cruz CA
2 years ago
Was this review helpful to you?
I installed and will be using again
Good quality
Bimbo
Boston
3 years ago
Verified Buyer
Was this review helpful to you?
I use these zone valves whenever possible
Easy to install. The high voltage switch simplifies wiring circulator pumps
Sam
Cullen VA
9 years ago
Verified Buyer
Was this review helpful to you?
Great product
This valve was purchased as a replacement for an exinsting one. once connected it performed perfectly.
Tango Fox
Farmington Hills, Mi
13 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: 18" lead?
Asked by bb 16 years ago
Add your answer
Verified Reply- PexSupply StaffYes, the unit is wired with 18" leads.
