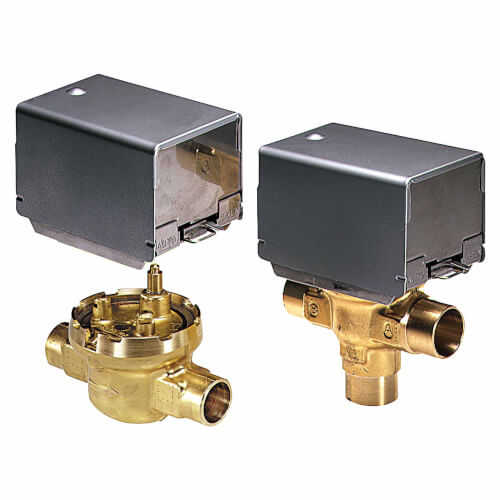

Three-way Fan Coil Valve, 3/4" NPT, 7.0 Cv
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$147.09 each
In Stock
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
7 Cv
3/4"
Straight-Through, 3-Way
FNPT x FNPT Connection
Normally Open
VU443 Actuator, VU843 Actuator
Description
–
Overview:
Three-way Fan Coil Valve, the VU54 high pressure zone valves are used to control the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors. IMPORTANT These valves are not for use in systems containing dissolved oxygen.
Featuers:
Compact construction for easy installation.
Fits under the cover of most baseboard convectors with actuator fitted to valve body.
VU54 provides three-way diverting control of water.
300 psi (2,000 kPa, PN20) operating pressure rating.
Patented ball seal provides long service life, soft close off.
Triple O-ring seal provides three lines of defense against corrosion and water leakage around drive shaft.
Quick opening flow curve.
Choice of NPT end connections for iron or steel piping.
Three-way Fan Coil Valve, the VU54 high pressure zone valves are used to control the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors. IMPORTANT These valves are not for use in systems containing dissolved oxygen.
Featuers:
Specs
–
| Flow Capacity (Cv): | 7 |
|---|---|
| Product Type: | Valve Body |
| Size: | 3/4" |
| Body Pattern: | Straight-Through 3-Way |
| Max Pressure Differential (PSI): | 10 psi |
| Flow Characteristic: | Quick Opening |
| Connection Type: | FNPT x FNPT |
| Ambient Temperature: | 34°-125°F |
| Position: | Normally Open |
| Used With: | VU443 Actuator VU843 Actuator |
