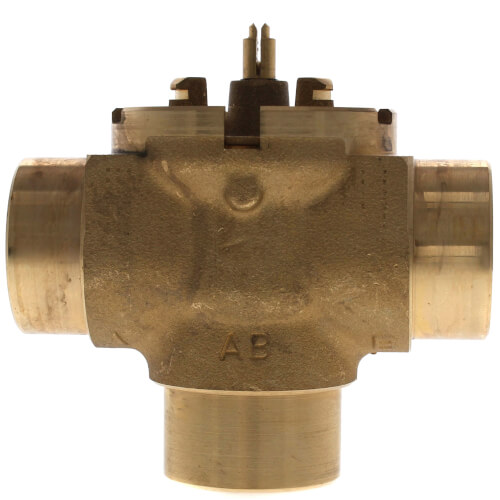

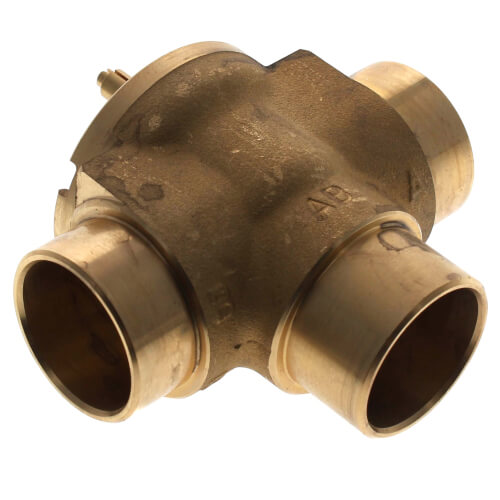

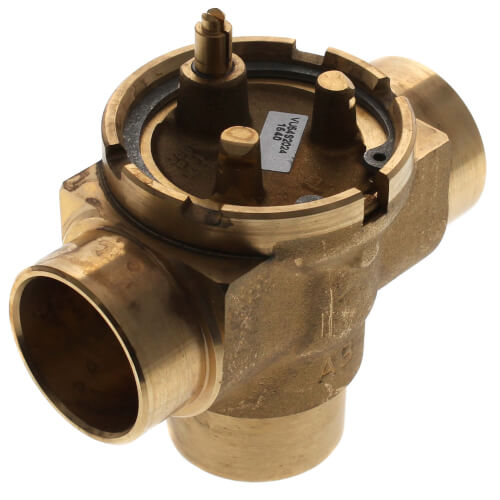

Three-way Fan Coil Valve, 1" Sweat, 7.0 Cv
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$89.86 each
In Stock
Get 2 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
7 Cv
1"
Straight-Through, 3-Way
Sweat Connection
Normally Open
VU843 Actuator, VU443 Actuator
Description
–
Overview:
Three-way Fan Coil Valve, the VU54 high pressure zone valves are used to control the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors. IMPORTANT These valves are not for use in systems containing dissolved oxygen.
Featuers:
Compact construction for easy installation.
Fits under the cover of most baseboard convectors with actuator fitted to valve body.
VU54 provides three-way diverting control of water.
300 psi (2,000 kPa, PN20) operating pressure rating.
Patented ball seal provides long service life, soft close off.
Triple O-ring seal provides three lines of defense against corrosion and water leakage around drive shaft.
Quick opening flow curve.
Choice of NPT end connections for iron or steel piping.
Three-way Fan Coil Valve, the VU54 high pressure zone valves are used to control the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors. IMPORTANT These valves are not for use in systems containing dissolved oxygen.
Featuers:
Specs
–
| Flow Capacity (Cv): | 7 |
|---|---|
| Product Type: | Valve Body |
| Size: | 1" |
| Body Pattern: | Straight-Through 3-Way |
| Max Pressure Differential (PSI): | 10 psi |
| Flow Characteristic: | Quick Opening |
| Connection Type: | Sweat |
| Ambient Temperature: | 34°-125°F |
| Position: | Normally Open |
| Used With: | VU843 Actuator VU443 Actuator |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
3 out of 1 review
100% would recommend this product
5 star
0%
4 star
0%
3 star
100%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Well-built valve, but failed early
Used this valve on heat circuit for hot tub with 160 degree water from wood-fired boiler. It worked very well for three years plus before the internals came apart. Buna-N valve ball was cracked, washer holding it in place came off. No rebuild kit available, had to order entire valve replacement. Hope the next one lasts a little longer.
Retired engineer
Columbus, OH
6 years ago
