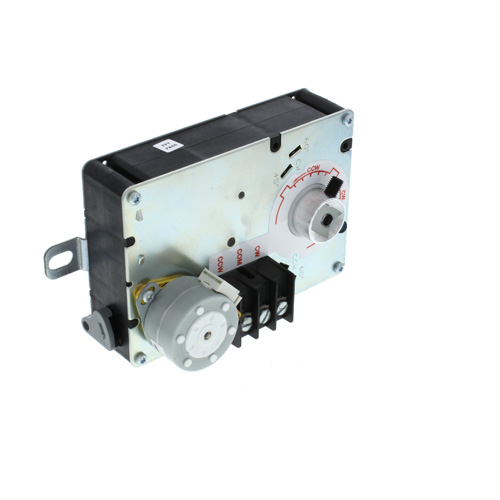

Non-Spring Return Damper Actuator, 90 Second

Used to control dampers in applications such as variable air volume (VAV) terminal units and for mounting on ball valves; suitable for use with SPDT or floating thermostats or building automation controls.

Features

• Control for air damper applications with up to10 sq.ft. assuming 3.5 in-lb per sq.ft. of damper area, velocity independent.
• Superior A/C synchronous submotor for consistent timing and actuator longevity.
• Eliminate need for limit switches or mechanical stops by providing magnetic coupling.
• All models include manual declutch lever, and bag assembly with two minimum position setscrews.
• Mount directly on 3/8 inch or 1/2 inch square or round damper shaft.
• Selectable 45, 60, and 90 stroke in either clockwise or counterclockwise direction.

Specifications

• Direct Coupled, General Purpose, Non-Spring Return Actuator
• Actuator Type: Damper
• Application Type: HVAC
• Torque/Force (lb-in., lbf : 35lb-in.
• Torque/Force (Nm, N): 4 Nm
• Fail Safe Mode: Non-Spring Return
• Control Signal: Floating, SPDT
• Supply Voltage: 24 Vac + or - 20%
• Number of Internal Auxiliary Switches: 0
• External Aux. Switches Available: Yes, 201052B
• Shaft Adapter Type: Aluminum Hub, two set screws
• Manual Operation: Declutch Mechanism
• Maximum Stall Torque/Force (lb-in., lbf): 70 lb-in.
• Maximum Stall Torque/Force (Nm, N): 8 Nm
• Mounting: Direct Coupled
• Frequency: 60 Hz
• Rotational Stroke: 90 degrees
• Rotational Stroke Adjustment: Mechanically limited at 45 or 60 degrees in cw or ccw directions
• Rotation to opening: By wiring
• Dimensions: 5.55 in high x 3.39 in wide x 2.52 in deep
• Compatible Damper Shafts (in.): 3/8 to ½ Square or Round
• Temperature Range, Ambient (F): 20 F to 125F
• Temperature Range, Storage (F): 20 to 130F
• Operating Humidity Range: 5 to 95% RH, non-condensing
• Maximum Noise Rating, Driving (dB(A) @ 1m): 45
• Environmental Rating: NEMA1
