Product Highlights
–
24V
405 lbf Torque
Description
–

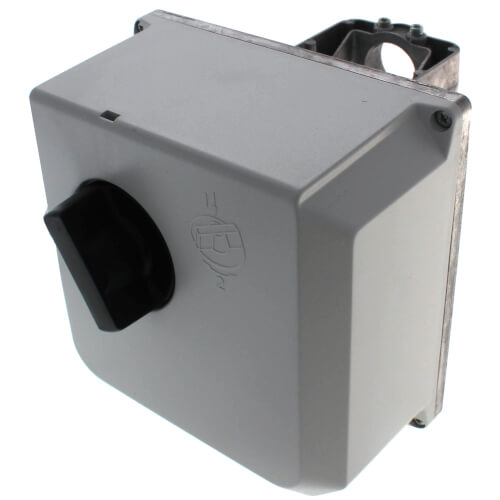

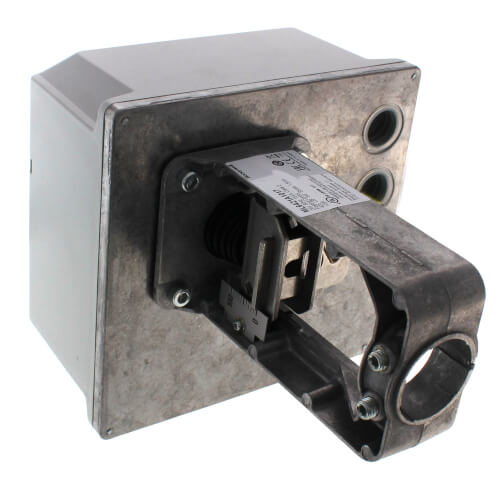

Direct Coupled Globe Valve Actuators provide floating or modulating control of chilled water, hot water, or steam, and mount directly on VGF series, V5011, and V5013 valves. These Non-Spring Return Actuators will operate 1/2 to 6 inch valves.
Features
Specifications
Features
- Easy and quick installation on valves with 1 3/8" bonnet and 3/4" stroke.
- No separate linkage required.
- Conduit connector standard.
- No adjustments required on linkage.
- Accurate valve positioning.
- Low power consumption.
- High close-off ratings.
- Force limiting end switches.
- Manual operator.
- Synchronous motor.
- Maintenance free.
- ML7420 has an internal selector plug that can be used to reverse the direction of action.
Specifications
- Direct-Coupled, Linear-Stoke, Valve Actuator
- Actuator Type: Valve
- Application Type: HVAC
- Torque/Force (lb-in., lbf : 405lb-in.
- Control Signal: SPDT 2 position, Floating
- Supply Voltage: 24 Vac + or - 20%
- Number of Internal Auxiliary Switches: 0
- External Aux. Switches Available: Yes
- Medium Temperature: 300 F Maximum
- Mounting: Directly on V5011/V5013 Globe Valves and VGF Flanged Globe Valves
- Frequency: 60 Hz, 50 Hz
- Electrical Connections: Screw Terminals
- Temp Range: 14 F to 122 F
- Operating Humidity Range: 5 to 95% RH
- Includes: 1/2 in. conduit hub, 1/2 in. flexible conduit adapter
Specs
–
| Product Type: | Actuator |
|---|---|
| Actuator Type: | Two Position |
| Voltage: | 24V |
| Torque: | 405 lbf |
| Stroke: | 3/4" |
| Fail Safe Mode: | Non-Spring Return |
| Timing: | 95 Seconds |
| Manual Oper.: | Knob |
