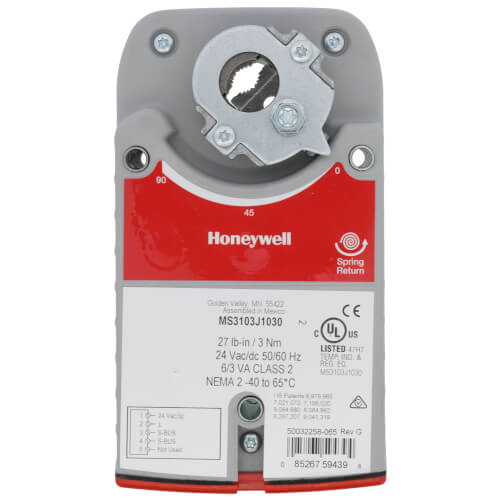

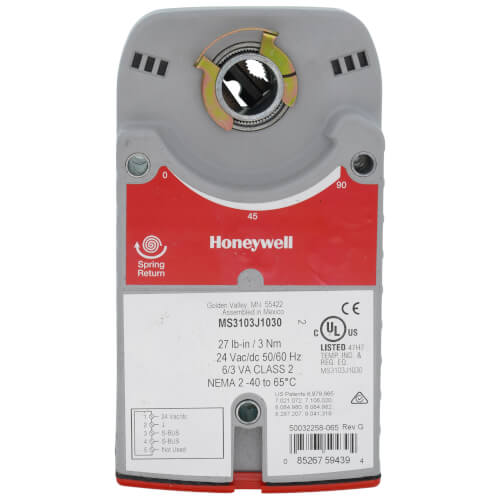

Spring Return Communicating Sylk Direct Coupled Damper Actuator, 90 Second, No Conduit (27 lb-in)

Precise, reliable performance. Lasting value. Ease of installation. Everything you look for in direct-coupled actuators hinges on quality. And quality engineering is what makes Honeywell’s complete line of actuators the top performers in the industry. Our global engineering team designs and tests our direct-coupled actuators to exceed rigorous global standards — and to meet Honeywell’s own demanding life testing. Moreover, with the Honeywell Sylk technology -- a two-wire, polarity-insensitive bus that provides both communications and power -- you can utilize multiple devices without the headaches of excessive wiring and labor costs. Smart solutions for intelligent buildings.

Specifications

• Mounting: Direct Coupled
• Frequency: 50 Hz; 60 Hz
• Electrical Connections: Enclosed screw terminal strip (22 to 14 AWG)
• Ambient Temperature Range: -40 F to +149F
• Control Signal: Sylk Enabled Fail Safe Mode: Spring Return
• Torque Rating (lb-in.): 27 lb-in
• Torque Rating (Nm): 3Nm
• Feedback: Sylk-enabled
• External Auxiliary Switches Available: No
• Rotational Stroke Adjustment: Mechanically limited 5 degree increments
• Timing, Nominal: Driving @ 60 Hz-- 90 sec
• Spring Return Timing: Maximum-- 25 sec
