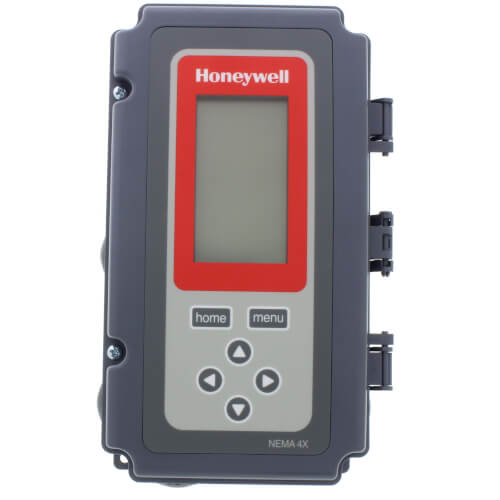

Electronic Temp Controller w/ 2 Temp Inputs, 2 SPDT Relays, NEMA 4X Enclosure
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$441.35 each
In Stock
Order by 6PM, receive Tomorrow
MANUALS (3)
This item replaces: T631F1092
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V, 240v, 120v
248°F Max Temp
-40°F Min Temp
8.15625" Height
4-13/32" Width
2-15/16" Depth
Description
–
The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.
Features
Features
- Save time on installations with the easy-to-use graphical Interface, large display, and the intuitive programming.
- Use the time clock scheduler or digital input to control the setback and disable output options to help save energy
- Protect equipment from freezing or overheating on models with the modulating high or low limit control option
- Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID)
- Configure models with reset in a few easy steps
- Control floating actuators with floating outputs on select models
- Eliminate the need for a separate time delay device and protect equipment with the minimum off time option
- Sensor 5002159-001 included with non-NEMA 4X models
- Sensor T775-SENS-WR included with NEMA-4X models
- Application: On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required.
- Type: Standard-NEMA 4X
- Relay Outputs: 2 SPDT
- Sensor Inputs : 2
- Voltage: 24 Vac or 120/240 Vac
- Frequency: 60 Hz
- Frequency: 50 Hz
- Relay Contact Ratings (24 Vac): 10.0A resistive
- Relay Contact Ratings (120 Vac):1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
- Relay Contact Ratings (240 Vac): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
- Dimensions (in.): 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep
- Sensor Element: 1097 ohms PTC at 77 F (25 C)
- Number of Sensor Inputs: 2
- Sensors Included: T775-SENS-WR (1)
- Maximum distance to sensor (ft): Up to 1,000 ft
- Setpoint Temperature Range (F): -40 F to 248 F
- Accuracy (F): ±1 F at 77 F
- Differential Temperature (F): 1 F to 150 F
- Operating Ambient Temperature Range (F): -40 F to 140 F @ 60 Hz
Specs
–
| Application: | Electronic Remote Temperature |
|---|---|
| Output: | 2 SPDT Relay |
| Voltage: | 24V 240v 120v |
| Sensor Inputs: | 2 |
| Hertz: | 60 50 |
| Contact Ratings 24v: | 10.0 A Resistive |
| Contact Ratings 120v: | 1/2 hp 58.8 ALR 125 VA Pilot Duty 9.8 AFL |
| Contact Ratings 240v: | 1/2 hp 125 VA Pilot Duty 29.4 ALR 4.9 AFL |
| Height (Inches): | 8.15625" |
| Width (Inches): | 4-13/32" |
| Depth (Inches): | 2-15/16" |
| Sensor Type: | 1097 ohm @ 77 F PTC T775-SENS-WR |
| Max Dist To Sensor: | Up to 1000 ft |
| Bulb Size: | 1/4" x 2" |
| Min Temp (F): | -40°F |
| Temperature Range (F): | -40°F to 248°F |
| Max Temp (F): | 248°F |
| Accuracy: | +/-1° at 77°F |
| Throttling Range: | 1°F to 150°F |
| Ambient Operating Temperature: | -40°F to 140°F @ 60 Hz -40°F to 125°F @ 50 Hz |
| Floating Output: | 1 |
| Features: | NEMA 4X |
