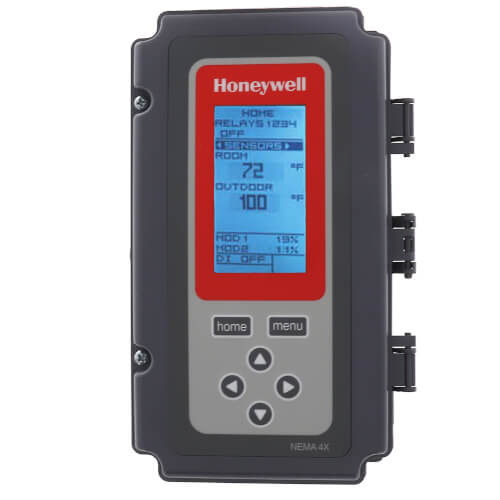

Electronic Temp Controller w/ 2 Temp Inputs, 4 SPDT Relays, 1 Sensor, NEMA 4X Enclosure
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$568.18 each
In Stock
Get 6 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
240v, 120v, 24V
248°F Max Temp
-40°F Min Temp
8.15625" Height
4-13/32" Width
2-15/16" Depth
Description
–
The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.
Features
Features
- Save time on installations with the easy-to-use graphical Interface, large display, and the intuitive programming.
- Use the time clock scheduler or digital input to control the setback and disable output options to help save energy
- Protect equipment from freezing or overheating on models with the modulating high or low limit control option
- Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID)
- Configure models with reset in a few easy steps
- Control floating actuators with floating outputs on select models
- Eliminate the need for a separate time delay device and protect equipment with the minimum off time option
- Sensor 5002159-001 included with non-NEMA 4X models
- Sensor T775-SENS-WR included with NEMA-4X models
- Application: On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required.
- Type: Standard-NEMA 4X
- Relay Outputs: 4 SPDT
- Sensor Inputs : 2
- Voltage: 24 Vac or 120/240 Vac
- Frequency: 60 Hz
- Frequency: 50 Hz
- Relay Contact Ratings (24 Vac): 10.0A resistive
- Relay Contact Ratings (120 Vac):1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
- Relay Contact Ratings (240 Vac): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
- Dimensions (in.): 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep
- Sensor Element: 1097 ohms PTC at 77 F (25 C)
- Number of Sensor Inputs: 2
- Sensors Included: T775-SENS-WR (1)
- Maximum distance to sensor (ft): Up to 1,000 ft
- Setpoint Temperature Range (F): -40 F to 248 F
- Accuracy (F): ±1 F at 77 F
- Differential Temperature (F): 1 F to 150 F
- Operating Ambient Temperature Range (F): -40 F to 140 F @ 60 Hz
- Replaces: T775C1009, T775D1008
Specs
–
| Application: | Electronic Remote Temperature |
|---|---|
| Output: | Relay 4 SPDT |
| Sensor Inputs: | 2 |
| Voltage: | 240v 120v 24V |
| Hertz: | 50 60 |
| Contact Ratings 24v: | 10.0 A Resistive |
| Contact Ratings 120v: | 1/2 hp 125 VA Pilot Duty 9.8 AFL 58.8 ALR |
| Contact Ratings 240v: | 29.4 ALR 1/2 hp 4.9 AFL 125 VA Pilot Duty |
| Height (Inches): | 8.15625" |
| Width (Inches): | 4-13/32" |
| Depth (Inches): | 2-15/16" |
| Sensor Type: | 1097 ohm @ 77 F PTC T775-SENS-WR |
| Max Dist To Sensor: | Up to 1000 ft |
| Bulb Size: | 1/4" x 2" |
| Min Temp (F): | -40°F |
| Temperature Range (F): | -40°F to 248°F |
| Max Temp (F): | 248°F |
| Accuracy: | +/-1° at 77°F |
| Throttling Range: | 1°F to 150°F |
| Ambient Operating Temperature: | -40°F to 140°F @ 60 Hz -40°F to 125°F @ 50 Hz |
| Floating Output: | 2 |
| Features: | NEMA 4X |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
1 Replacement Part
1097 ohm Water-resistant Temperature Sensor
SKU: T775-SENS-WR
Honeywell
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.6 out of 5 reviews
100% would recommend this product
5 star
60%
4 star
40%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
I have
There a great product .. we us them for heat trace and all the air handling for the plant
Bill
Warminster pa
7 years ago
Verified Buyer
Was this review helpful to you?
Good Thermostat for Advanced Control
I've used these thermostats in a number of settings. So far, they seem reliable and are relatively intuitive. The digital screen makes them a lot more intuitive than the models that we used to use. The instruction book is also very useful.
Nightfox
Pennsylvania
7 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Best heat control I have found
The temperature control works very well
Mr fix it
Easton MD
8 years ago
Verified Buyer
Was this review helpful to you?
Old Reliable
This Honeywell control is an old standby for me. The quality I expect from Honeywell and the added convenience of SuppyHouse.com
Erik
Philadelphia, PA
10 years ago
Verified Buyer
Was this review helpful to you?
Works just fine.
Good use for simple non-DDC Zone Temp Control sequence.
Goldy
Ferndale, MI
11 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Does this unit required any type of annual calibration?
Asked by Reva 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffUsually not once it is initially calibrated. See page 11. http://s3.supplyhouse.com/manuals/1351175488179/85563_PROD_FILE.pdf
