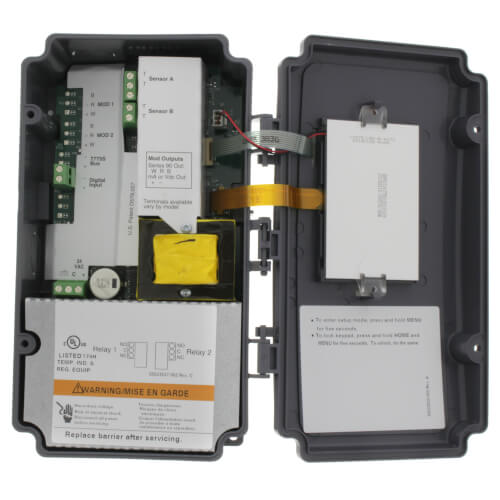

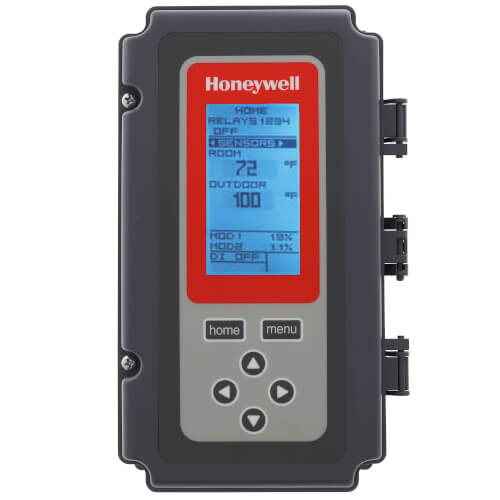

Electronic Temp Controller w/ 2 Temp Inputs, 2 SPDT Relays, 1 Sensor
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$349.41 each
In Stock
Get 16 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (3)
This item replaces: T7079B1028, T7079B1044, T7079B1036, T678C1005, T7079B1051
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V, 240v, 120v
248°F Max Temp
-40°F Min Temp
8.15625" Height
4-13/32" Width
2-15/16" Depth
Description
–
The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.
Features
Specifications
Features
- Save time on installations with the easy-to-use graphical Interface, large display, and the intuitive programming.
- Use the time clock scheduler or digital input to control the setback and disable output options to help save energy
- Protect equipment from freezing or overheating on models with the modulating high or low limit control option
- Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID)
- Configure models with reset in a few easy steps
- Control floating actuators with floating outputs on select models
- Eliminate the need for a separate time delay device and protect equipment with the minimum off time option
- Sensor 5002159-001 included with non-NEMA 4X models
- Sensor T775-SENS-WR included with NEMA-4X models
Specifications
- Application: On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required.
- Type: Standard-NEMA 1
- Relay Outputs: 2 SPDT
- Sensor Inputs : 2
- Voltage: 24 Vac or 120/240 Vac
- Frequency: 60 Hz
- Frequency: 50 Hz
- Relay Contact Ratings (24 Vac): 10.0A resistive
- Relay Contact Ratings (120 Vac):1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
- Relay Contact Ratings (240 Vac): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
- Dimensions (in.): 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep
- Sensor Element: 1097 ohms PTC at 77 F (25 C)
- Number of Sensor Inputs: 2
- Sensors Included: 50021579-001 (1)
- Maximum distance to sensor (ft): Up to 1,000 ft
- Setpoint Temperature Range (F): -40 F to 248 F
- Accuracy (F): ±1 F at 77 F
- Differential Temperature (F): 1 F to 150 F
- Operating Ambient Temperature Range (F): -40 F to 140 F @ 60 Hz
- Replaces: T775A1019, T775B1000
Specs
–
| Application: | Electronic Remote Temperature |
|---|---|
| Output: | 2 SPDT Relay |
| Sensor Inputs: | 2 |
| Voltage: | 24V 240v 120v |
| Hertz: | 60 50 |
| Contact Ratings 24v: | 10.0 A Resistive |
| Contact Ratings 120v: | 58.8 ALR 9.8 AFL 125 VA Pilot Duty 1/2 hp |
| Contact Ratings 240v: | 1/2 hp 4.9 AFL 29.4 ALR 125 VA Pilot Duty |
| Height (Inches): | 8.15625" |
| Width (Inches): | 4-13/32" |
| Depth (Inches): | 2-15/16" |
| Sensor Type: | 1097 ohm @ 77 F PTC 50021579-001 |
| Max Dist To Sensor: | Up to 1000 ft |
| Bulb Size: | 1/4" x 2" |
| Min Temp (F): | -40°F |
| Max Temp (F): | 248°F |
| Temperature Range (F): | -40°F to 248°F |
| Accuracy: | +/-1° at 77°F |
| Throttling Range: | 1°F to 150°F |
| Ambient Operating Temperature: | -40°F to 125°F @ 50 Hz -40°F to 140°F @ 60 Hz |
| Floating Output: | 1 |
| Features: | NEMA-1 Enclosure |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Voltage
Sensor Type
Bulb Size
CURRENT ITEM
Electronic Remote Temperature
24V
240v
120v
240v
120v
1097 ohm @ 77 F PTC
50021579-001
50021579-001
1/4" x 2"
You May Also Need
1 Replacement Part
1097 Ohm Standard Temperature Sensor
SKU: 50021579-001
Honeywell
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.25 out of 8 reviews
100% would recommend this product
5 star
63%
4 star
13%
3 star
13%
2 star
13%
1 star
0%
Showing 1-8 of 8 reviews
Great controller
I have install over 10 of these controllers. Works as intended and have no issues.
Love the product.
MJ in LA
los Angeles
7 months ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Great product
Good product reasonable price.
Alonso
Miami
2 years ago
Verified Buyer
Was this review helpful to you?
great product
good
Tank
Portland
5 years ago
Verified Buyer
Was this review helpful to you?
exact fit for what I needed
Quick delivery and correct product
angry elf
Hickory, NC
8 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again
This is a very easy product to install. It has many ways that it can be configured depending on the application.
Ernie
Winfield, Ilinois
10 years ago
Verified Buyer
Was this review helpful to you?
it would be great if.. it worked
no output power at all... i got a dud..
.....
San Francisco
13 years ago
Verified Buyer
Was this review helpful to you?
Excellent for Light Commercial Buildings
Excellent for Water/Steam Boilers Thermostatic Controller when used with an Outdoor Air Sensor in a Light Commercial Building,up to six Families, or up to 300,000 BTU/H Output for NON modulating boilers.
FourStar
Long Island City, NY
13 years ago
Verified Buyer
Was this review helpful to you?
New design may not mean better product.
Replaced customer's failed older model T775B controller that had been in service for many years with this newer version. After approximately 3 months of service it started getting intermittent EE (eeprom) faults that eventually wouldn't clear. Good news is PexSupply immediately gave me an RMA# to return it and sent a replacement fast. I do like the ease of programming and control options of this model, and would recommend it, however my opinion may change if this one fails prematurely. Time will tell . . . .
Drives Pro
Florida
16 years ago
Verified Buyer
Was this review helpful to you?
