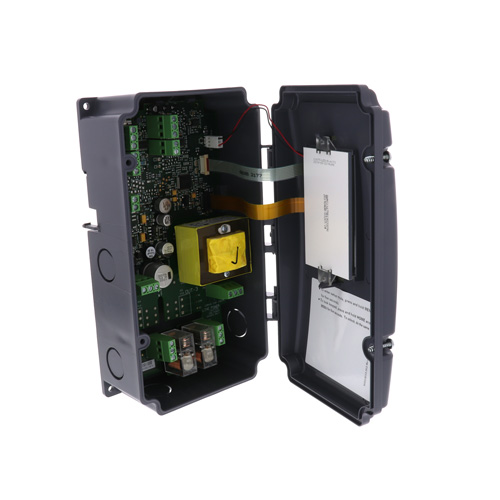

Electronic Temp Controller w/ 2 Temp Inputs, 2 SPDT Relays, 2 Analog Outputs, 1 Sensor
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$449.47 each
In Stock
Get 10 Thu, Jun 11
Order by today, receive Thursday
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V, 240v, 120v
248°F Max Temp
-40°F Min Temp
8.15625" Height
4-13/32" Width
2-15/16" Depth
Description
–
The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.
Features
Features

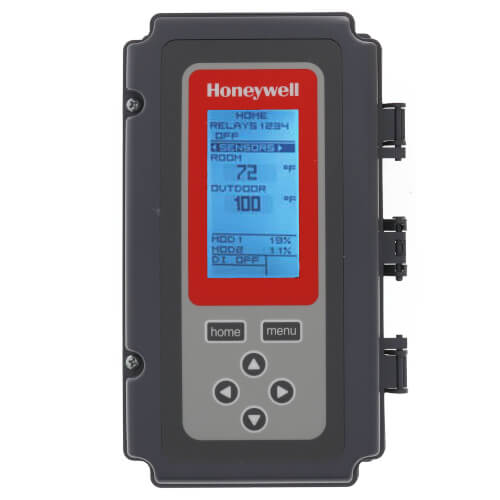

- Save time on installations with the easy-to-use graphical Interface, large display, and the intuitive programming.
- Use the time clock scheduler or digital input to control the setback and disable output options to help save energy
- Protect equipment from freezing or overheating on models with the modulating high or low limit control option
- Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID)
- Configure models with reset in a few easy steps
- Control floating actuators with floating outputs on select models
- Eliminate the need for a separate time delay device and protect equipment with the minimum off time option
- Sensor 5002159-001 included with non-NEMA 4X models
- Sensor T775-SENS-WR included with NEMA-4X models
- Application: On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required.
- Type: Modulating-NEMA 1
- Analog Outputs: 2
- Relay Outputs: 2 SPDT
- Sensor Inputs : 2
- Voltage: 24 Vac or 120/240 Vac
- Frequency: 60 Hz
- Frequency: 50 Hz
- Relay Contact Ratings (24 Vac): 10.0A resistive
- Relay Contact Ratings (120 Vac):1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
- Relay Contact Ratings (240 Vac): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
- Dimensions (in.): 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep
- Sensor Element: 1097 ohms PTC at 77 F (25 C)
- Number of Sensor Inputs: 2
- Sensors Included: T775-SENS-WR (1)
- Maximum distance to sensor (ft): Up to 1,000 ft
- Setpoint Temperature Range (F): -40 F to 248 F
- Accuracy (F): ±1 F at 77 F
- Differential Temperature (F): 1 F to 150 F
- Operating Ambient Temperature Range (F): -40 F to 140 F @ 60 Hz
- Replaces: T775E1015, T775E1023, T775E1056, T775E1056
Specs
–
| Application: | Electronic Remote Temperature |
|---|---|
| Type: | Modulating |
| Output: | 2 SPDT Relay (2) Analog |
| Sensor Inputs: | 2 |
| Voltage: | 24V 240v 120v |
| Hertz: | 50 60 |
| Contact Ratings 24v: | 10.0 A Resistive |
| Contact Ratings 120v: | 9.8 AFL 125 VA Pilot Duty 1/2 hp 58.8 ALR |
| Contact Ratings 240v: | 125 VA Pilot Duty 29.4 ALR 1/2 hp 4.9 AFL |
| Height (Inches): | 8.15625" |
| Width (Inches): | 4-13/32" |
| Depth (Inches): | 2-15/16" |
| Sensor Type: | 1097 ohm @ 77 F PTC 50021579-001 |
| Max Dist To Sensor: | Up to 1000 ft |
| Bulb Size: | 1/4" x 2" |
| Temperature Range (F): | -40°F to 248°F |
| Min Temp (F): | -40°F |
| Max Temp (F): | 248°F |
| Accuracy: | +/-1° at 77°F |
| Throttling Range: | 1°F to 150°F |
| Features: | NEMA-1 Enclosure High/Low Mod Limit |
| Ambient Operating Temperature: | -40°F to 140°F @ 60 Hz -40°F to 125°F @ 50 Hz |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
1 Replacement Part
1097 Ohm Standard Temperature Sensor
SKU: 50021579-001
Honeywell
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 5 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
Easy Company to deal with
Availability of products and timely delivery is fantastic
Richeyz55
Louisville KY
4 years ago
Verified Buyer
Was this review helpful to you?
Exactly The Item I Needed!
I have a cooling tower that I felt was many times running faster than it should be. Why run the fan full speed or for that matter, at all if the water temperature is already where it should be? Since I was using a VFD to run the fan motor anyway, I felt the correct temperature control would do exactly what I needed it to do...That is, run full speed when the water is a higher temperature and then slow down or shut off completely if the water temperature is where it needs to be.
This particular controller was my choice because of all the favorable reviews and its well known brand name in thermostats. It turned out to be the right choice and has been working flawlessly ever since I installed it.
Texbuck
Central Texas
5 years ago
Verified Buyer
Was this review helpful to you?
Yes
The product it's excellent
Jose
Miami
8 years ago
Verified Buyer
Was this review helpful to you?
Great pricing and Great customer service
I was putting togeather a remote power plant and needed a Honeywell controller. The pricing was spot on and shipping was quick and fair. We ended up damaging one of the controllers and Supply house was great about getting it repaired and replaced right away.
The Big Deal
Tok Alaska
9 years ago
Verified Buyer
Was this review helpful to you?
Good value
We were looking for a product to operate a vfd. The product is pretty easy to program and has plenty of ability with the AOs and BOs. I like the fact that it is more flexible than the system 350 controls from JC.
