'/%3E%3C/svg%3E)

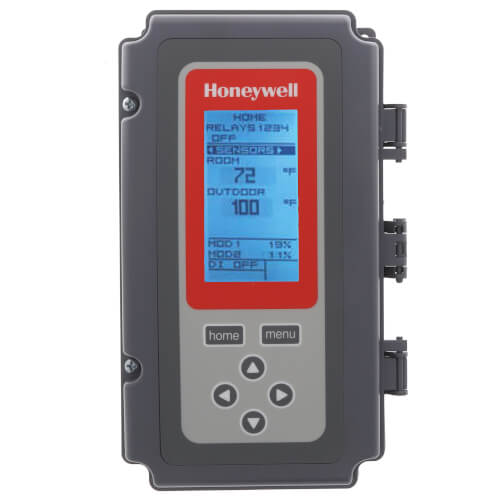

Electronic Temp Controller Boiler Special w/ 3 Temp Inputs, 4 SPDT Relays, 1 Pump Output, 3 Sensors
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
Features
- Save time on installations with the easy-to-use graphical Interface, large display, and the intuitive programming.
- Use the time clock scheduler or digital input to control the setback and disable output options to help save energy
- Protect equipment from freezing or overheating on models with the modulating high or low limit control option
- Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID)
- Configure models with reset in a few easy steps
- Control floating actuators with floating outputs on select models
- Eliminate the need for a separate time delay device and protect equipment with the minimum off time option
- Sensor 5002159-001 included with non-NEMA 4X models
- Sensor T775-SENS-WR included with NEMA-4X models
- Application: Staging controller for applications where electronic accuracy and remote sensing of temperature is required.
- Type: Special Boiler with Reset-NEMA 1
- Relay Outputs: 4 SPDT
- Sensor Inputs : 3
- Voltage: 24 Vac or 120/240 Vac
- Frequency: 60 Hz
- Frequency: 50 Hz
- Relay Contact Ratings (24 Vac): 10.0A resistive
- Relay Contact Ratings (120 Vac):1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
- Relay Contact Ratings (240 Vac): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
- Dimensions (in.): 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep
- Sensor Element: 1097 ohms PTC at 77 F (25 C)
- Number of Sensor Inputs: 2
- Sensors Included: T775-SENS-WR (1)
- Maximum distance to sensor (ft): Up to 1,000 ft
- Setpoint Temperature Range (F): -40 F to 248 F
- Accuracy (F): ±1 F at 77 F
- Differential Temperature (F): 1 F to 150 F
- Operating Ambient Temperature Range (F): -40 F to 140 F @ 60 Hz
- Output Reset: Yes
- Digital Output: 1
- Stages Loop Control: Yes
Specs
| Application: | Electronic Remote Temperature Boiler Control |
|---|---|
| Output: | (1) Digital 4 SPDT |
| Sensor Inputs: | 3 |
| Voltage: | 24V 240v 120v |
| Hertz: | 50 60 |
| Contact Ratings 24v: | 10.0 A Resistive |
| Contact Ratings 120v: | 125 VA Pilot Duty 58.8 ALR 1/2 hp 9.8 AFL |
| Contact Ratings 240v: | 125 VA Pilot Duty 1/2 hp 29.4 ALR 4.9 AFL |
| Height (Inches): | 8.15625" |
| Width (Inches): | 4-13/32" |
| Depth (Inches): | 2-15/16" |
| Sensor Type: | 1097 ohm @ 77 F PTC (3) 50021579-001 |
| Max Dist To Sensor: | Up to 1000 ft |
| Bulb Size: | 1/4" x 2" |
| Max Temp (F): | 248°F |
| Temperature Range (F): | -40°F to 248°F |
| Min Temp (F): | -40°F |
| Accuracy: | +/-1° at 77°F |
| Throttling Range: | 1°F to 150°F |
| Ambient Operating Temperature: | -40°F to 140°F @ 60 Hz -40°F to 125°F @ 50 Hz |
| Features: | Output Reset NEMA 4X Stages Loop Control Boiler Control |
Questions?
You May Also Need
1 Replacement Part
Need help finding a replacement part?
Product Reviews
I would buy this product again
Reduces energy usage
A great replacement for an old control.
Product Q&A
2 QuestionsQ: On a T775P2003, can one Sensor be set to heat and one Sensor to cool function?
Asked by mark 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe modern T775s are not heat/cooling assigned at the sensor; they are assigned at the relay or loop to be controlled. You could control 1 heating relay and 1 cooling relay off the same sensor. That being said, the T775P is a loop controller. The T775P can only control one loop. Once you assign that loop to heating or cooling, it is controlled off sensor A, reset by sensor B, and you can put sensor C somewhere you want to check the temperature but not control. So the end answer for this model is no, in regards to some relays being heating and some cooling.
Q: On a four spdt controller, can two be set to heat and two to cool function? Based on either clock or reset?
Asked by Ecologicair 15 years ago
Add your answer
Verified Reply- PexSupply StaffNot on the T775P2003 (you can only have one loop). You can do this on two other controllers, T775L2007 and T775B2040. With the T775L2007, you can have two loops (one can be heating and one can be cooling with two relays in each loop). When using the T775B2040, each relay can be set independently for either heating or cooling.
