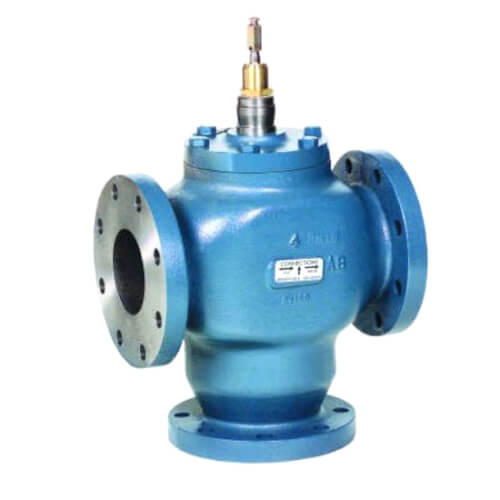

4" Three-Way Flanged Globe Mixing Valve (160 Cv)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$3,704.77 each
In Stock
Get 8 Tue, Mar 28 - Fri, Mar 31
MANUALS (2)
Lift Gate
–
This product weighs 135.02 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
4"
150, @240°F (Water) 150 PSI
Flanged x Flanged Connection
Cast Iron
160 Cv
13" Length
Description
–
The V5013B are three-way mixing valves. The V5013C are three-way diverting valves. These valves provide proportional or two-position control of hot or chilled water in heating or cooling systems. These valves are offered in sizes 2 1/2 in. through 6 in.
Features
Specifications
Features
- Not suitable for combustible gases.
- Valves utilize direct mounting valve actuators, Q5020/Q5022 linkages with Direct Coupled Actuators, or Pneumatic Valve Actuators to operate the valve.
- Constant total flow through full plug travel.
- Stainless steel stem prevents corrosion.
- Class IV (0.01% of Cv) Leakage Rating
Specifications
- Valve Type: Globe Valve
- Body Pattern: Three-way
- Controlled Medium: Chilled or hot water with up to 50% Glycol
- Connection Type: Flanged
- Max Safe Operating Pressure: 150 psi at 240 F water
- Valve Action: Stem up increases B to AB flow
- ANSI/ASME Rating:125
- Actuation: Must be purchased separately
- Maximum Differential for Quiet Water Service (psi): 20 psid
- Static Pressure Rating: ANSI 150
- Ambient Temperature Rating: 40 F to 250 F water
- Leakage Rating: Seat: 0.05% of Cv
- Flow Characteristic: Stem up increases B to AB flow
- Materials (Body): Cast Iron
- Materials (seat): Bronze
- Materials (stem): Stainless Steel
- Bonnet Size: 1-3/8 in.
Specs
–
| Application: | Point of Source Heating |
|---|---|
| Size: | 4" |
| Max Pressure (PSI): | 150 @240°F (Water) 150 |
| Fluid Temperature Range: | 40 F to 250 F |
| Connection Method: | Flanged |
| Connection Type: | Flanged x Flanged |
| Material: | Cast Iron |
| Flow Capacity (Cv): | 160 |
| Length (Inches): | 13" |
| Width (Inches): | 9" |
| Height: | 14-9/16" |
| Bonnet Size: | 1-7/8" |
| Valve Action: | Stem up increases B to AB flow Mixing |
| Stem Travel: | 1-1/2" |
| Max Pressure Differential (PSI): | 20 psi |
| Valve Type: | Globe |
| Controlled Fluid: | Chilled or hot water with up to 50% Glycol |
| ANSI/ASME Rating: | 125 |
| Body Pattern: | 3-Way |
| Flow type: | Linear |
