VU54N1023 has been discontinued
Discontinued December 26, 2023
This product was discontinued by the manufacturer.
Product Highlights
–
7.0 Cv
3-Way
FNPT x FNPT Connection
Normally Open
Description
–

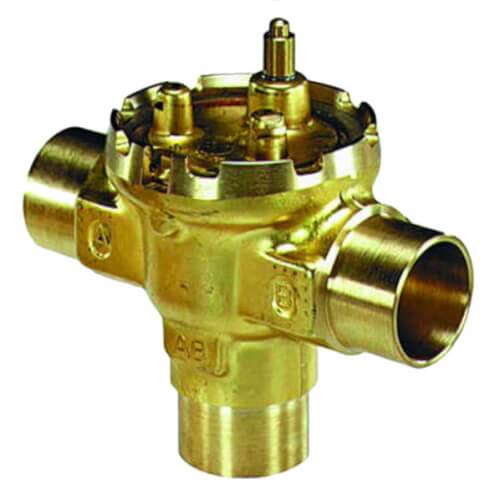

Three-way Fan Coil Valve, the VU54 high pressure zone valves are used to control the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors.
Features
Features
- Compact construction for easy installation.
- Fits under the cover of most baseboard convectors with actuator fitted to valve body.
- VU54 provides three-way diverting control of water.
- 300 psi (2,000 kPa, PN20) operating pressure rating.
- Patented ball seal provides long service life, soft close off.
- Triple O-ring seal provides three lines of defense against corrosion and water leakage around drive shaft.
- Quick opening flow curve.
- Choice of NPT end connections for iron or steel piping.
Specs
–
| Actuator Type: | Valve |
|---|---|
| Product Type: | Valve Body |
| Flow Capacity (Cv): | 7.0 |
| Body Pattern: | 3-Way |
| Pipe Size: | 1" |
| Connection Type: | FNPT x FNPT |
| Position: | Normally Open |
