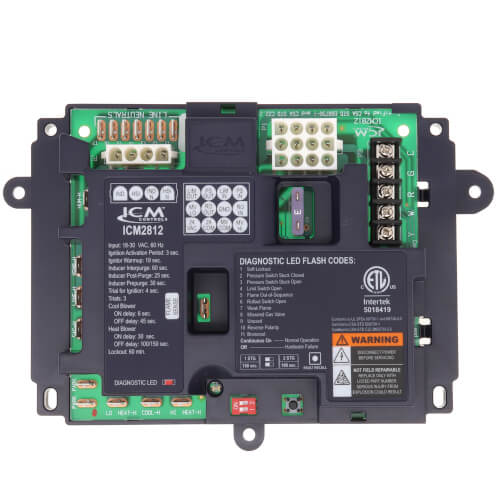

ICM2812-KIT Furnace Control Board Kit
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$139.56 each
In Stock
Get 105 Tue, May 27
MANUALS (2)
This item replaces: ICM2812
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
The ICM2812-KIT is a universal replacement board that comes packaged with a series of cable harnesses that make it a replacement for the White-Rodgers 50M56U-843 and more than 150 competitive part numbers.
Product Features:
Product Specifications:
Product Features:
- Hot Surface Ignition (HSI) control board
- Microprocessor-based
- Monitors timing, trial for ignition, system switches, flame sensing and lockout.
- 100% lockout safety feature
- Compatible with LP or Natural Gas
- LED indication for status and fault codes to aid in troubleshooting
Product Specifications:
- Control voltage: 24 VAC (18-30 VAC)
- Line voltage: 120 VAC
- HSI Hot Surface Ignitor: 6 amp @ 120 VAC
- Gas Valve: 1.5 amp @ 24 VAC
- Inducer draft motor: 2.2 FLA @120 VAC
- Blower motor: 14.5 FLA @ 120 VAC
- Humidity Range: 5 to 95% relative humidity (non-condensing)
- White-Rodgers: 50M56U-843
Specs
–
| Product Type: | Control Board Kit |
|---|---|
| Operating Temp Range: | -40° to 176°F |
| Control Voltage: | 18-30 VAC |
| Line Voltage: | 120 VAC |
| Humidity Range: | 5% to 95% Relative Humidity (Non-Condensing) |
| Heat Blower ON Delay: | 30 Seconds |
| Heat Blower OFF Delay: | 100 Seconds 150 Seconds |
| Cool Blower ON Delay: | 6 Seconds |
| Cool Blower OFF Delay: | 45 Seconds |
