Description

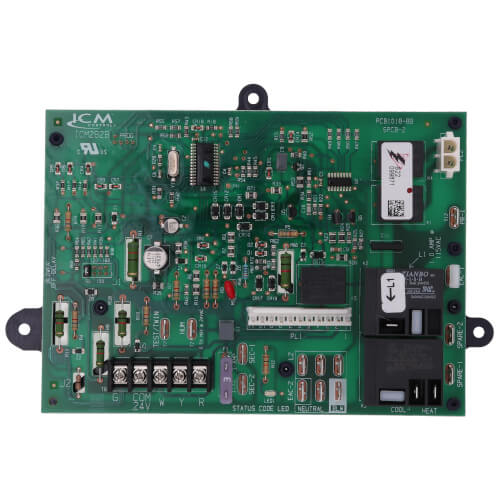

ICM282B Fixed Speed Furnace Control Module w/ Software for Enhanced Controls

Product Features
  • Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
  • Microprocessor-based
  • Designed for 100% gas shutoff in case of ignition failure
  • Twinning compatible with other ICM282B boards
  • Reverse polarity protection
  • Secondary brownout voltage protection
  • Compatible with a 24 VAC standard thermostat
  • Provides diagnostic LED to aid in troubleshooting
Hide Description
Manuals (1)
Specs
Product Type:

Furnace Control

Voltage:

Line (98/132 VAC) @ 60 Hz

Ignitor:

5A @ 120 VAC

Cool Blower:

10A @ 120 VAC

Heat:

5A @ 120 VAC

Inducer Motor:

4A FLA-8.0 LRA @ 120 VAC

Gas Valve:

1.5A @ 24 VAC

Operating Temp Range:

-40° to 176°F

Heat Blower ON Delay:

60 Seconds

Heat Blower OFF Delay:

90 Seconds 120 Seconds 150 Seconds 180 Seconds

Fan (Heat) On/Off:

1 Second

Cool ON Time Delay:

2 Seconds

Cool OFF Time Delay:

90 seconds with jumper JW2 uncut

5 seconds with jumper JW2 cut

×
