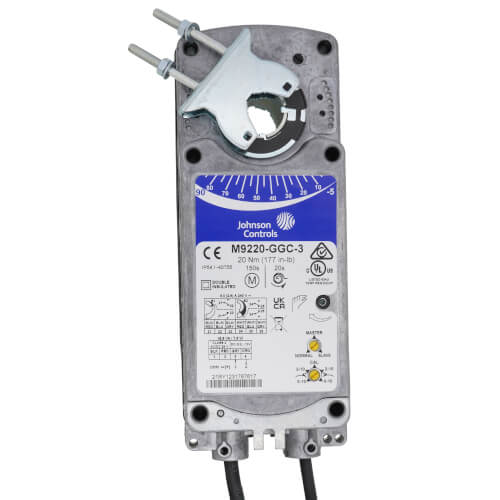

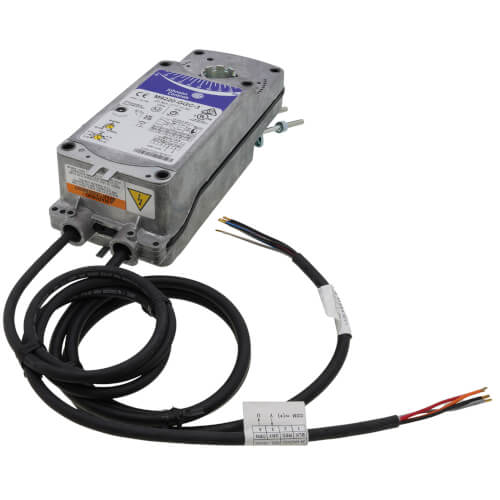

M9220 Proportional Spring Return Actuator, w/ 2 Switches (177 lb-in)

The M9220-xxx-3 Actuators are direct mount, spring return electric actuators that operate on these available power options:

• AC 24 V at 50/60 Hz or DC 24 V (AGx, BGx, GGx, HGx)
• AC 120 V at 60 Hz (BAx)
• AC 230 V at 50/60 Hz (BDx)

These bidirectional actuators do not require a damper linkage, and are easily installed on dampers with 1/2 to 3/4 in. or 12 to 19 mm round shafts, or 3/8 and 1/2 in. or 10, 12, and 14 mm square shafts using the standard shaft clamp included with the actuator. An optional M9220-600 Jackshaft Coupler Kit is available for 3/4 to 1-1/16 in. or 19 to 27 mm round shafts, or 5/8 and 3/4 in. or 16, 18, and 19mm square shafts. The M9210-xxx-3 Series Electric Spring Return Actuators provide running and spring return torques of 89 lb·in (10 N·m). Integral line voltage auxiliary switches are available on the xxC models to indicate end-stop position, or to perform switching functions within the selected rotation range.

Features:

• Rotation Time for 90°
  - Power On - Running: 150 seconds
  - Power Off - Spring Return: 20 seconds
• Power Requirements: 24 VAC +/- 20%, VDC +/- 10%
• VA Rating, Transformer Sizing: 20
• VA: Running (Holding): 15.5 (7.7)
• Input Signal: 0(2) to 10 VDC 0(4) to 20 mA (w/500 ohm Resistor)
• Position Feedback: 0(2) to 10 VDC
• Auxiliary Switches: 2 SPDT, 5.0 A (2.9 A Inductive) @ 240V
• Electrical Connections: 48 in. (1.2 m) 18 AWG Appliance Cable
