1-11/16" Metal Smoke Control Damper Actuator, 5-10 PSI with Plastic Bushing, Clevis & Cotter Pins
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$80.30 each
In Stock
Get 101 Wed, May 14
Order by 6PM, receive Wednesday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–

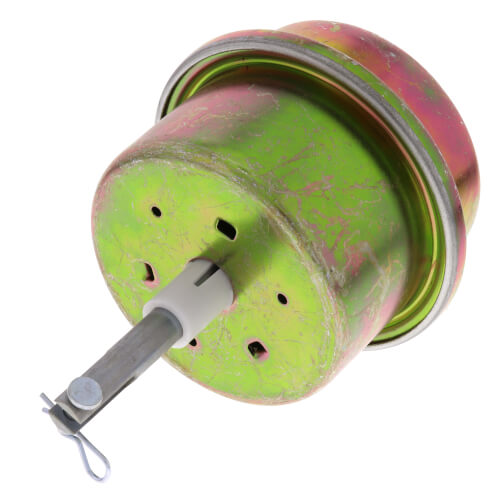

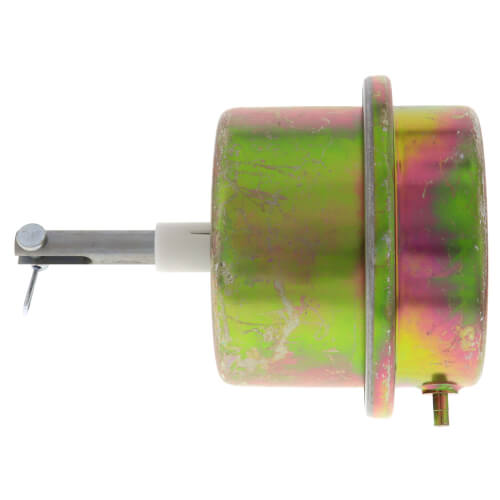

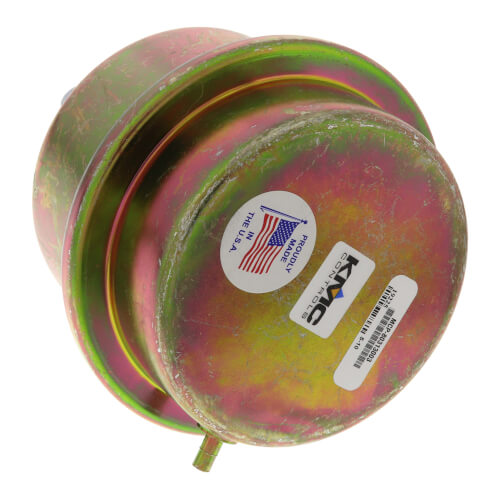

1-11/16" Metal Smoke Control Damper Actuator, 5-10 PSI with Plastic Bushing, Clevis & Cotter Pins
This model does not come with a Mounting Bracket.
This series of actuators is designed for use in Smoke Control Systems. At elevated temperatures up to 450° F, the actuators position automatic smoke dampers for up to 30 minutes (or indefinitely within normal operating temperatures). They are manufactured and tested to meet Underwriters Laboratories Standard UL555S for use on “Leakage Rated Dampers For Use In Smoke Control Systems.”
The actuators may be used for gradual or two-position applications. Models come with right-angle bracket mounting. A variety of spring and linkage combinations are available.
Features:
Includes:
This model does not come with a Mounting Bracket.
This series of actuators is designed for use in Smoke Control Systems. At elevated temperatures up to 450° F, the actuators position automatic smoke dampers for up to 30 minutes (or indefinitely within normal operating temperatures). They are manufactured and tested to meet Underwriters Laboratories Standard UL555S for use on “Leakage Rated Dampers For Use In Smoke Control Systems.”
The actuators may be used for gradual or two-position applications. Models come with right-angle bracket mounting. A variety of spring and linkage combinations are available.
Features:
- The metal body is ideal for ceiling installations
- Mounting bracket supplied on all models except -2099 and -3003
- Crank arm linkage or direct connection between damper and actuator shaft available
Includes:
- PLastic Bushings
- Clevis
- Cotter Pins
Specs
–
| Product Type: | Actuator |
|---|---|
| Type: | Damper |
| PSI Range: | 5-10 PSI |
| Stroke: | 1-11/16" |
| Includes: | Clevis Cotter Pins Plastic Bushing |
