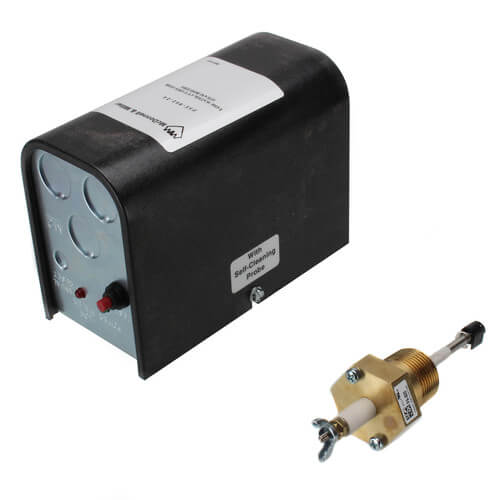

PSE802-24, Electronic 24V Low Water Cutoff with Auto Reset (Steam)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$280.00 each
In Stock
Order by today, receive Tuesday
MANUALS (1)
This item replaces: 153917, PS-802-24
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
15 (Steam) MAX PSI
250°F Max Temp
24V
Description
–
The Series PSE-800 probe type LWCO uses patented technology to monitor changes in water conductivity. When defined parameters are exceeded the new PSE-800 makes a decision to shut the burner off based on the volatility/variability of the resistance readings. This new patented technology provides the best protection possible without turning off the boiler unless a low water condition exists. As an added measure of safety, the control will turn off the boiler if it recognizes an out-of-water condition when the sensitivity threshold is exceeded.
Features and Benefits
Features and Benefits
- Green power is on indicating LED
- Red low water indicating LED
- 30 second DOM
- Test button
- Self-Cleaning probe
- No lock out with loss of power if probe is in water
- Provisions to add water feeder of alarm
- Models available with:
-120 VAC
-24 VAC (meets ANSIZ21.13a specification) - 'FIX2' probe (remote)
Specs
–
| Application: | Steam Boilers Hot Water Boilers |
|---|---|
| Type: | Electronic |
| Reset Type: | Automatic |
| Max Pressure (PSI): | 15 (Steam) |
| Max Temp (F): | 250°F |
| Sensitivity: | 7000 ohms |
| Voltage: | 24V |
| Delay on Make Timer: | 15 seconds |
| Max Ambient Temp (°F): | 120°F |
| Delay on Break Timer: | 10 seconds |
| Electrical Ratings (AFL): | 7.2 A @ 120 VAC 3.75 A @ 240 VAC |
| Electrical Ratings (ALR): | 43.2 A @ 120 VAC 21.6 A @ 240 VAC |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Type
Reset Type
Voltage
CURRENT ITEM
Steam Boilers
Hot Water Boilers
Hot Water Boilers
Electronic
Automatic
24V
You May Also Need
1 Replacement Part
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.9 out of 10 reviews
100% would recommend this product
5 star
90%
4 star
10%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-10 of 10 reviews
I would buy this product again
I use this Low Water Cutoff with Auto Reset (Steam) for which it was intended.
BO
Clio, Michigan
1 years ago
Verified Buyer
Was this review helpful to you?
As advertised
Resolved issue.
Firstlook
Ct
2 years ago
Verified Buyer
Was this review helpful to you?
I am happy with my order
I got the parts very quick and it works great.
Kevin
Bronx, NY
3 years ago
Verified Buyer
Was this review helpful to you?
Great customer service with the parts and fast shipping too
I loved the fact that they had stock on these as even the factory cannot get them out for months at best. Really appreciate a place like this that stocks what people need, and not at too bad of a price. Shipping is always quick and customer service is always above and beyond.
ScootahBug
Kansas City, Missouri
4 years ago
Verified Buyer
Was this review helpful to you?
Definitely would buy this again when needed
SupplyHouse.com prices are very competitive... and when a customer of mine needs Heat and I can temporarily get the heat going till I get a part , I will order from Supply House and receive the part next day ... I have the phone app so I can order it from the field ... thanks To the people at SupplyHouse
Jim B Heating
Northport NY
5 years ago
Verified Buyer
Was this review helpful to you?
prompt and excellent Service
product well made installation instruction clear and precise. have no problem recommending to anyone.
Rudy
Brooklyn New York
6 years ago
Verified Buyer
Was this review helpful to you?
Very quick delivery
I needed a different probe type, but that was my fault. This product works great
x
x
8 years ago
Verified Buyer
Was this review helpful to you?
Great Probe
Install was straight forward and didn't require a lot of time. Probe does exactly what it's supposed to do. Had a Safegard 400 but I coudn't get it to work for me. So far so good.
SteamBoiler
Dayton, OH
8 years ago
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Easy Replacement of Existing Unit
I was working on my steam boiler and thought it was the automatic filler but it turned out that it was this 10 year old unit that needed to be replaced. It was easy to swap out the old unit for this one. It took about 10 minutes as I did not switch out the probe. All has been working well for about three weeks now. There is no wiring included as the wiring would come from the boiler manufacturer but this unit plugged into wire from older unit. Very simple.
CBTHEFARMER
Baltimore, MD
10 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again and again
great product easy to install
pacific
new york
11 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Can I re-use the probe that comes with my PSE802-24 with this newer model PSE802-24? Thanks
Asked by ERWIN 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Erwin. This LWCO uses probe part number PA-800 (SKU: 354081) - https://www.supplyhouse.com/Mcdonnell-Miller-354081-PA-800-Probe-Assembly-for-750-750-MT-120-PS800-PS801-PS850-PS851
Was this review helpful to you?
Q: What is the warranty on this
Asked by Scott 11 years ago
Add your answer
Verified Reply- Supplyhouse Staff1 year from date of installation.
