The M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY™ & HAMMERVAC™ Dedicated Dust Extractor Kit is the next generation of cordless rotary hammers, delivering you ultimate jobsite performance and productivity. The M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer is the fastest drilling and hardest-hitting rotary hammer in its class with AUTOSTOP™ Control for enhanced safety, drilling up to 50 5/8" x 3" holes per charge when paired with the M18™ HIGH OUTPUT™ XC6.0 Battery. This cordless hammer drill provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control. This feature prevents over-rotation if the tool gets bound up while drilling in rebar or hard aggregate. The MILWAUKEE® M18 FUEL™ HAMMERVAC™ 1-1/8" Dedicated Dust Extractor features an inline design engineered to connect directly to and be power by the M18 FUEL™ 1-1/8” SDS Plus Rotary Hammer. Utilizing the same replaceable certified HEPA filter as other HAMMERVACS™, which filters 99.97% of all particles greater than 0.3µm, means more compatibility on the jobsite. The built-in adjustable depth stop and ruler offer easy and precise adjustments. This dust extractor has OSHA Table One Compliance for respirable crystalline silica when drilling up to 1-1/8" in diameter and 8" in depth. This extractor features AUTOPULSE™ Filter Cleaning Mechanism that automatically cleans the filter after each use. The dust box comes equipped with a vacuum port for suctioning out the dust with a large vacuum or dust extractor instead of dumping the dust out into a trash receptacle.

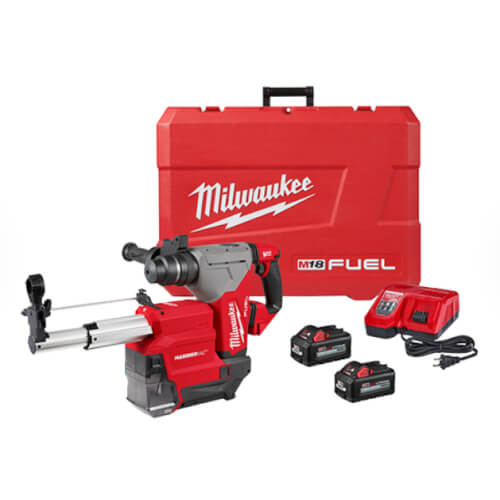

  • (1) M18 FUEL 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY
  • (1) M18 FUEL 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY & HAMMERVAC Dedicated Dust Extractor Kit
  • (2) M18 REDLITHIUM HIGH OUTPUT XC6.0 Battery Pack
  • (1) M18 & M12 Rapid Charger
Product Features
  • POWERSTATE Brushless Motor provides more power, more run-time, and longer life
  • REDLINK PLUS Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging
  • The M18 REDLITHIUM HIGH OUTPUT XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18
  • REDLITHIUM XC battery packs
  • 3.6 ft-lbs Impact Energy
  • ONE-KEY™ technology allows for tracking, tool security, and inventory management
  • AVS Anti-Vibration System: Minimizes vibration for maximum comfort 3 Mode: Rotary Hammer, Hammer Only, Rotary Only
  • Includes M18 HAMMERVAC 1-1/8" Dedicated Dust Extractor
  • AUTOPULSE Filter Cleaning Mechanism cleans the dust extractor filter automatically after use
  • OSHA Table 1 Compliant Solution
  • Dust Extractor Capacity: Up to 1-1/8" in Diameter and Up to 8" in Depth
  • 800 RPM and 4,600 BPM
Product Specifications
  • Length: 13.5"
  • Tool Warranty: 5 Year (Tool), 3 Years (Battery)
  • Weight: 8.9 lbs
  • Power Source: Cordless
  • Motor Type: Brushless
  • No Load Speed: 800 RPM
  • Blow Energy: 3.6 ft-lbs
  • BPM: 0-4600
  • Solid Bit Capacity: 1-1/8"
  • Thin Wall Core Bit Capacity: 3"
  • Drilling Mode: 3-Mode: Rotary Hammer, Hammer Only, Rotation Only`
  • Handle Style: Drop Motor
  • Vibration: AVS Anti-Vibration System
  • Battery System: M18
  • Voltage: 18v
Hide Description
Manuals (2)
Product Type:

Rotary Hammer



Impact Energy:

3.6 ft-lb





Battery Type:

M18 Lithium-Ion Battery

Chuck Type:


Power Source:


Batteries Included:




Power Source:
