Cordless Vacuum Pump, No Battery, BreakFree Series (4 CFM) & Pro Series Rapid Evacuation Kit with Valve Core Removal Tool and Hose (3/8" to 1/4" Fitting)

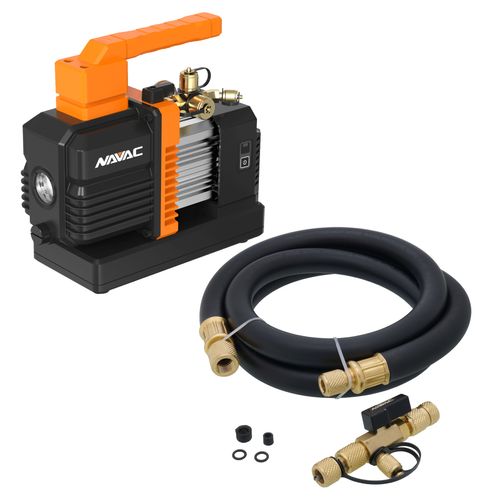

The NP4D-NEVK1 package includes the Cordless Vacuum Pump, No Battery, BreakFree Series (4 CFM) (NP4D) and the Pro Series Rapid Evacuation Kit with Valve Core Removal Tool and Hose (3/8" to 1/4" Fitting) (NEVK1).

Package Includes:

(1) NP4D: Cordless Vacuum Pump, No Battery, BreakFree Series (4 CFM)

The NP4D is a cordless vacuum pump from Navac's BreakFree Series, designed for portability and everyday HVAC/R evacuation jobs. With a 4 CFM capacity and a cordless build, it eliminates cord management hassles in the field. This version is sold without a battery, making it ideal for technicians who already own compatible Navac Li-ion battery packs.

What's in the Box

• 1 x NP4D cordless vacuum pump (no battery included)

Key Benefits & Features

• Cordless design for maximum mobility and ease of use
• 4 CFM airflow capacity covers light-to-medium HVAC/R evacuation tasks
• Sold without battery-cost-effective for those with existing compatible packs
• BreakFree Series durability for professional field use

Related Products

• Navac NP6DLM Cordless Vacuum Pump, BreakFree Series, 6 CFM
• Navac NVO1Q Quantum Premium Vacuum Pump Oil (1 Qt)
• Navac NH34AB 3/4" Big Boy Evacuation Hose, 3 ft

The NAVAC BreakFree Cordless Vacuum Pumps are a technician's favorite, offering unmatched portability, reliability, and performance for HVAC professionals. Now available in a pump-only form for even greater flexibility, they are compatible with DEWALT batteries using the included adapter for maximum convenience, while NAVAC batteries deliver optimal performance. Lightweight and compact, these brushless DC pumps are efficient, easy to carry, and store. With dual-stage technology, they achieve impressive vacuum performance: 2 CFM/23 microns (*NP2D), 4 CFM/15 microns (NP4D), and 6 CFM/15 microns (NP6D). Additional features such as a backflow prevention check valve, isolation valve, lifting hook, and A2L refrigerant compatibility make the BreakFree series the ultimate solution for modern HVAC needs. *Not included in NP2D

• Power Supply: 18V, 9Ah
• Flow Rate: 4 CFM
• Ultimate Vacuum: 15 micron
• Pump Design: Dual-Stage, DC Motor
• Motor Power: 1/2 HP
• Inlet Port: 1/4" , 3/8" , 1/2" Flare
• Oil Capacity: 8.8 oz
• Dimension: 10.3 x 4.8 x 9.5 in
• Weight: 14 lbs (no battery)
• Warranty: 2 Years
  (1) NEVK1: Pro Series Rapid Evacuation Kit with Valve Core Removal Tool and Hose (3/8" to 1/4" Fitting)

  Rapid evacuation kit with valve core removal tool and hose assembly sized for 3/8" to 1/4" transitions. Built to help reduce flow restrictions for faster pull-downs.

  Navac's NEVK1 Pro Series Rapid Evacuation Kit features the NVR1 Valve Core Removal Tool and the NHB1 Big Boy High-flow 6' Long Evacuation Hose.

  Product Features:

  • NVR1 Valve Core Removal Tool:
    • For use with both 1/4" and 5/16" flare fitting
    • Designed for high-pressure refrigerants including R410a
    • Metal handle for durability
    • Vacuum rated to 20 microns
  • NHB1 Big Boy High-flow 6' Long Evacuation Hose, 3/8" to 1/4" Fitting:
    • 1/2" large diameter for fast evacuation
    • 3200 psi burst pressure, 640 psi working pressure
    • 4-layer construction for low permeation
    • Vacuum rated to 20 microns
  What's in the Box
  • 1 × Valve core removal tool
  • 1 × Evacuation hose assembly (3/8" to 1/4" )
  Key Benefits & Features
  • Speeds setup and evacuation steps
  • Pro-grade components for daily use
  • Pairs well with Navac vacuum pumps
