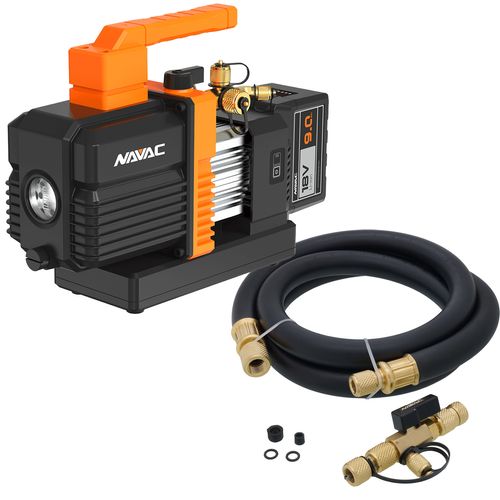

Cordless Vacuum Pump, BreakFree Series (6 CFM) & Pro Series Rapid Evacuation Kit with Valve Core Removal Tool and Hose (3/8" to 1/4" Fitting)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Description
Package Includes:
(1) NP6DLM: Cordless Vacuum Pump, BreakFree Series (6 CFM)The NP6DLM is a cordless vacuum pump designed for portability and performance. Part of Navac's BreakFree Series, it delivers a 6 CFM capacity with no cord management required-ideal for rooftops, tight spaces, and mobile service applications.
What's in the Box- 1 x NP6DLM cordless vacuum pump
- Cordless operation for maximum jobsite mobility
- 6 CFM capacity covers most residential and light commercial service jobs
- BreakFree Series design eliminates cord hassle in the field
- Compact and rugged build for daily use
- Navac NVO1Q Quantum Premium Vacuum Pump Oil (1 Qt)
- Navac NH34AB 3/4" Big Boy Evacuation Hose, 3 ft
- Navac NP4D Cordless Vacuum Pump, 4 CFM
NOTE: Battery not included with Pump. Battery purchased separately.
The NAVAC NP6DLM Cordless Vacuum Pump from the BreakFree Series gives HVAC professionals the freedom of cordless operation with exceptional performance. This latest model offers a higher flow rate of 6 CFM, making it suitable for a broader range of applications. With its dual-stage pump design, the NP6DLM delivers a deep vacuum down to 15 microns. Utilize power management optimization and its high-performance lithium battery, the pump can run up to an hour of continuous operation. It also features a check valve, isolation valve, gas ballast, and lifting hook for added convenience.
- Power Supply: 18V, 9Ah
- Flow Rate: 6 CFM
- Ultimate Vacuum: 15 micron
- Pump Design: Dual-Stage, DC Motor
- Motor Power: 1/2 HP
- Inlet Port: 1/4" , 3/8" , 1/2" Flare
- Oil Capacity: 14.1 oz
- Dimension: 14 x 5 x 10 in
- Weight: 21.2 lbs (no battery)
- Warranty: 2 Years
Rapid evacuation kit with valve core removal tool and hose assembly sized for 3/8" to 1/4" transitions. Built to help reduce flow restrictions for faster pull-downs.
Navac's NEVK1 Pro Series Rapid Evacuation Kit features the NVR1 Valve Core Removal Tool and the NHB1 Big Boy High-flow 6' Long Evacuation Hose.
Product Features:
- NVR1 Valve Core Removal Tool:
- For use with both 1/4" and 5/16" flare fitting
- Designed for high-pressure refrigerants including R410a
- Metal handle for durability
- Vacuum rated to 20 microns
- NHB1 Big Boy High-flow 6' Long Evacuation Hose, 3/8" to 1/4" Fitting:
- 1/2" large diameter for fast evacuation
- 3200 psi burst pressure, 640 psi working pressure
- 4-layer construction for low permeation
- Vacuum rated to 20 microns
- 1 × Valve core removal tool
- 1 × Evacuation hose assembly (3/8" to 1/4" )
- Speeds setup and evacuation steps
- Pro-grade components for daily use
- Pairs well with Navac vacuum pumps
