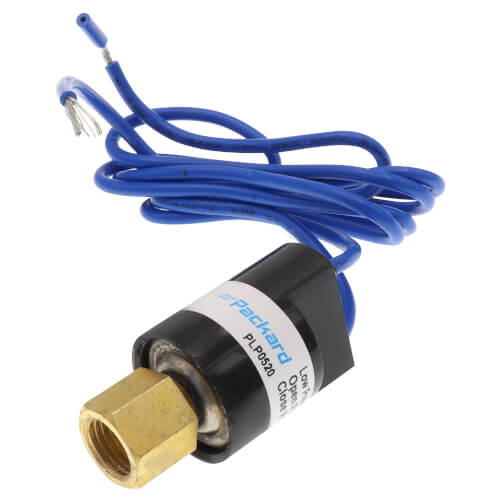

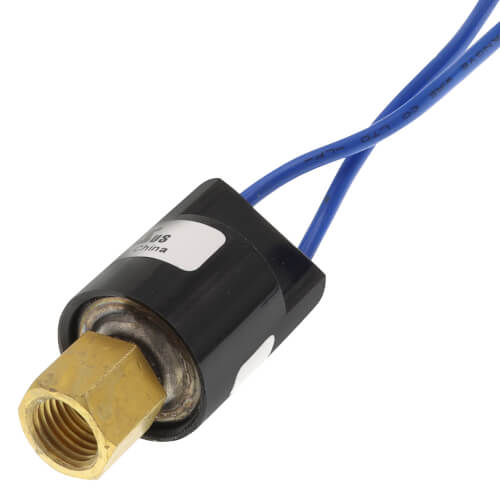

Low Pressure Control with ±5 PSI Tolerance (Open 5 PSI/Closed 20 PSI)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$25.89 each
In Stock
Get 17 Tue, Jul 7
Order by today, receive Tuesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
SAE Female Connection
1/4" Connection
Description
–
Low Pressure Control with ±5 PSI Tolerance (Open 5 PSI/Closed 20 PSI)
Features:
Features:
- High precision controls at economical prices. Encapsulated, non-adjustable, single pole - single throw, direct mount switches for use with HFC, HCFC, and CFC refrigerants.
- Low pressure SPST open on pressure fall
- Temperatures: Ambient 20°F to 176°F (-30°C to 80°C). Fluid 60°F to 250°F (-50°C to 120°C)
- Rated Voltage: 50/60 Hz, 24/120/240 Volts (6 RLA, 36 LRA)
- Life at rated load: 100,000 cycles
- 1/4" SAE female flare fitting with valve core depressor
- Snap acting stainless steel hermetically sealed sensor (SHP, SLP, and SFC)
- Small size and light weight for direct mounting
- Excellent set point repeatability/stability
- Pressure range: 0 to 650 PSI
- Burst pressure: 5000 PSI
Specs
–
| Product Type: | Pressure Control |
|---|---|
| Open Pressure (PSI): | 5 |
| Close Pressure (PSI): | 20 |
| Tolerence: | ±5 PSI |
| Operating Temp Range: | 20° to 176°F |
| Connection Size: | 1/4" |
| Connection Type: | SAE Female |
