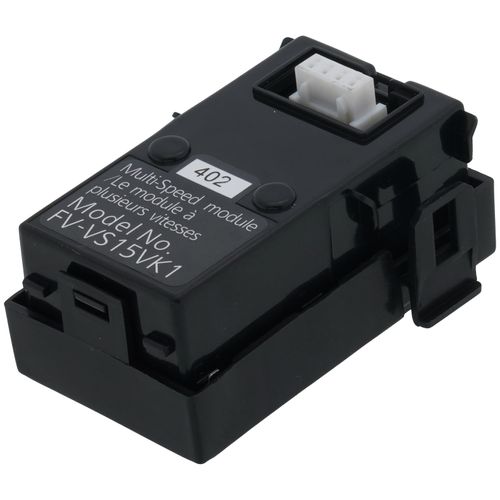

Panasonic Multi-Speed Module with Time Delay for WhisperGreen Select Exhaust Fan, FV-VS15VK1

Overview:

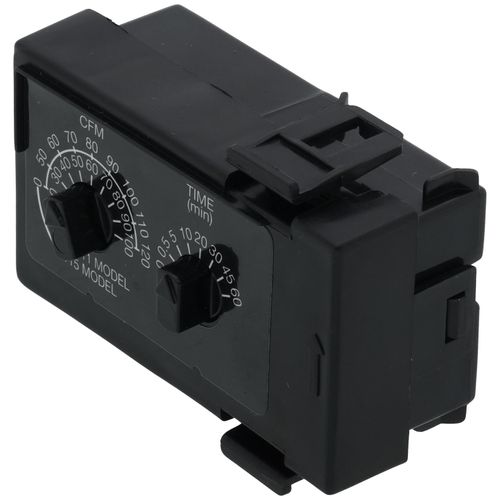

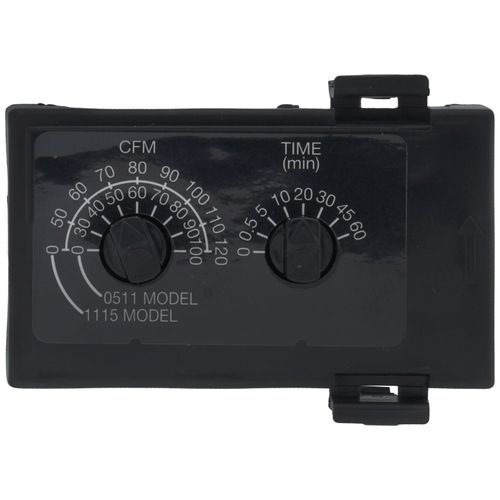

The WhisperGreen Select Multi-Speed Module with Time Delay allows you to select the proper CFM settings to satisfy ASHRAE 62.2 continuous ventilation requirements. The fan runs continuously at a pre-set lower level (0, 30-100 or 0, 50-120 CFM, in 10 CFM increments), then elevates to a maximum level of operation (50-80-110 or 110-130-150 CFM) when the wall switch is turned on, or when the Motion Sensor module is activated. A High/Low delay timer returns the fan to the pre-set CFM level after a period of time set by the user.

Features

• Multi-Speed Vent Fan Module with Time Delay: This unit elevates your WhisperGreen exhaust fan to a maximum level of operation (50-80-110 or 110-130-150 CFM) when the wall switch is turned on, or when the Motion Sensor module is activated
• Customizable Operation: A High/Low delay timer returns the fan to the pre-set CFM level after a period of time set by the user; Module allows you to select the proper CFM settings to satisfy ASHRAE 62.2 continuous ventilation requirements
• Easy Installation: For use with WhisperGreen Select fans, which allow you to select up to three out of four snap-in Plug ’N Play modules to customize your ventilation fan
• Explore Our Selection: We offer a wide range of vent fans including fans with LED lights, timers, heaters, and condensation sensors for humidity control, plus installation kits, soffit vents, replacement motors and fan cover grilles
• Healthy Living Begins with Clean Indoor Air: Ensure a healthy home for your family with our high-performance Panasonic ventilation systems, air purification devices and HVAC solutions
