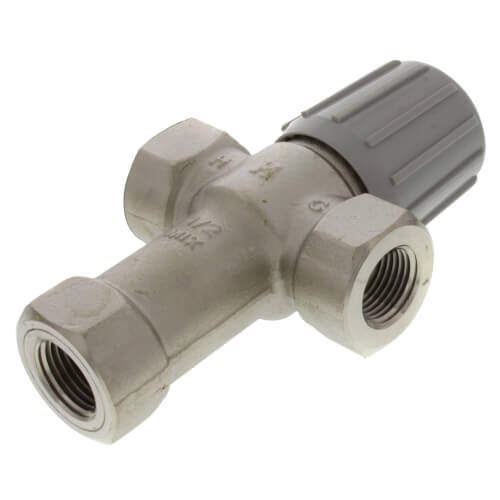

1/2" NPT Lead Free Mixing Valve (70-120F)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$159.13 each
In Stock
Get 32 Thu, Jul 2
Order by today, receive Thursday
MANUALS (2)
This item replaces: AM100C-1
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
1/2"
3.2 Cv
120°F Max Temp
70°F Min Temp
70°F - 120°F
Description
–
The Honeywell AM-1 Lead Free series accurately adjusts, maintains and limits the hot water temperature to a desired setting selected by the user. In domestic water applications it offers scalding protection and bacteria growth control. By installing a Honeywell AM-1 mixing valve and raising water heater storage temperature setting and limiting mixed outlet water temperature to safe temperature more usable hot water is available. In heating applications it provides comfort and protects the equipment.
Features
Specifications
Features
- Dual purpose mixing or diverting valves
- Constant water temperature under changing operating conditions
- Reliable performance at minimum flow of 0.5 gpm
- Proportional valve (simultaneous control of hot and cold water)
- Temperature limit at any point
- Flow reduction in seconds if cold water supply is interrupted
- Nickel-plated brass construction, EPDM O-rings
- High performance thermoplastic proportioning shuttle
- Straight through design (hot and cold at the same level)
- Max. pressure 150 psi (1034 kPa)
- Max temperature 212 F (100 C)
- Designed for easy maintenance and element replacement. Teflon® coating of internal valve components to prevent mineral build-up and extend life.
- Tamper resistent design
- Valve trapping not required
- AM-1 Union STD & C and AM1070 Models include check valves on both hot and cold ports
- ASSE, CSA and IAPMO listed
- U.S. Patent No. 6,079,625
Specifications
- Description: 1/2 inch NPT Mixing Valves
- Connection Type: Union Sweat
- Pipe Size: 1/2 in.
- Operating Temperature Range: 70 F to 120 F
- Capacity: 1.78Cv
- ASSE: 1017
Specs
–
| Max Temp (F): | 120°F |
|---|---|
| Type: | Mixing Valve |
| Application: | Point of Source Heating |
| Size: | 1/2" |
| Flow Capacity (Cv): | 3.2 |
| Min Temp (F): | 70°F |
| Temperature Range (F): | 70°F - 120°F |
| Connection Method: | Threaded |
| Connection Type: | FNPT x FNPT |
| Material: | Nickel Plated Brass |
| Lead Free: | Yes |
| Standards Met: | ASSE 1017 |
| Max Pressure (PSI): | 150 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Size
Connection Method
Connection Type
Standards Met
CURRENT ITEM
Point of Source
Heating
Heating
1/2"
Threaded
FNPT x FNPT
ASSE 1017
Product Reviews
4.33 out of 3 reviews
100% would recommend this product
5 star
67%
4 star
0%
3 star
33%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
Great results!
Item was shipped fast! Exactly as stated in ad...! Solved our problem of hot/cold at extreme temps...Thanks!
Da greek
Cali
11 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Easy installation
Great mixing valve, easy to install and set, but beware - unlike the another version of this valve, it does not contain check valves. Since I didn't know, I don't order from supply house and had to source locally at $25 each.
Lt
Houston
12 years ago
Verified Buyer
Was this review helpful to you?
Does excellent job on Motor Home Aquahot
Used on Aquahot system on motor home to control temp of water for shower. Does a great job
Al the full timer
Caro MI
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: do mixing valves go bad.
Asked by vinnie 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffyes they do.
Was this review helpful to you?
Q: Is this threaded regularly or pipe-threaded?
Asked by A Frame 12 years ago
Add your answer
Verified Reply- Supplyhouse StaffNPT = National pipe thread.
Was this review helpful to you?
