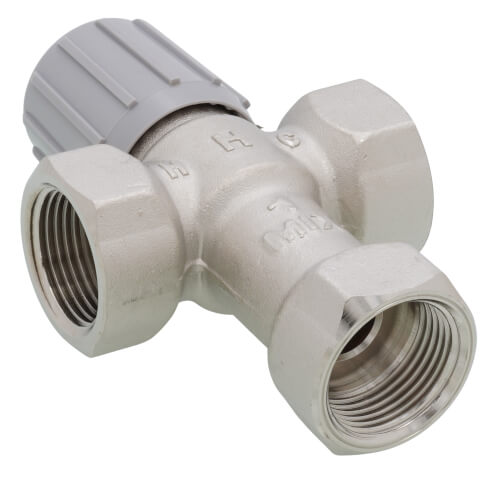

1" NPT Mixing Valve (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$197.76 each
In Stock
Get 3 Wed, Jul 8
MANUALS (2)
This item replaces: AM102C-1
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
1"
4.3 Cv
120°F Max Temp
70°F Min Temp
70°F - 120°F
Description
–
**Lead Free
The Honeywell AM-1 series accurately adjusts, maintains and limits the hot water temperature to a desired setting selected by the user. In domestic water applications it offers scalding protection and bacteria growth control. By installing a Honeywell AM-1 mixing valve and raising water heater storage temperature setting and limiting mixed outlet water temperature to safe temperature more usable hot water is available. In heating applications it provides comfort and protects the equipment. Multiple applications include heat pump systems, domestic water, nursing homes, public facilities, automatic faucets, radiant floor heating, space heating, combo systems, solar hot water, greenhouses, and industrial applications.
Product Features
The Honeywell AM-1 series accurately adjusts, maintains and limits the hot water temperature to a desired setting selected by the user. In domestic water applications it offers scalding protection and bacteria growth control. By installing a Honeywell AM-1 mixing valve and raising water heater storage temperature setting and limiting mixed outlet water temperature to safe temperature more usable hot water is available. In heating applications it provides comfort and protects the equipment. Multiple applications include heat pump systems, domestic water, nursing homes, public facilities, automatic faucets, radiant floor heating, space heating, combo systems, solar hot water, greenhouses, and industrial applications.
Product Features
- Dual purpose mixing or diverting valves
- Constant water temperature under changing operating conditions
- Reliable performance at minimum flow of 0.5 gpm
- Proportional valve (simultaneous control of hot and cold water)
- Temperature limit at any point
- Flow reduction in seconds if cold water supply is interrupted
- Nickel-plated brass construction, EPDM O-rings
- High performance thermoplastic proportioning shuttle
- Straight through design (hot and cold at the same level)
- Max. pressure 150 psi (1034 kPa)
- Max temperature 212 F (100 C)
- Designed for easy maintenance and element replacement. Teflon® coating of internal valve components to prevent mineral build-up and extend life.
- Tamper resistent design
- Valve trapping not required
- AM-1 Union STD & C and AM1070 Models include check valves on both hot and cold ports
- ASSE, CSA and IAPMO listed
- U.S. Patent No. 6,079,625
Specs
–
| Max Temp (F): | 120°F |
|---|---|
| Size: | 1" |
| Material: | Brass |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
| Flow Capacity (Cv): | 4.3 |
| Min Temp (F): | 70°F |
| Temperature Range (F): | 70°F - 120°F |
| Max Pressure (PSI): | 150 |
| Type: | Mixing Valve |
| Lead Free: | Yes |
| Standards Met: | ASSE 1017 |
| Application: | Point of Source |
