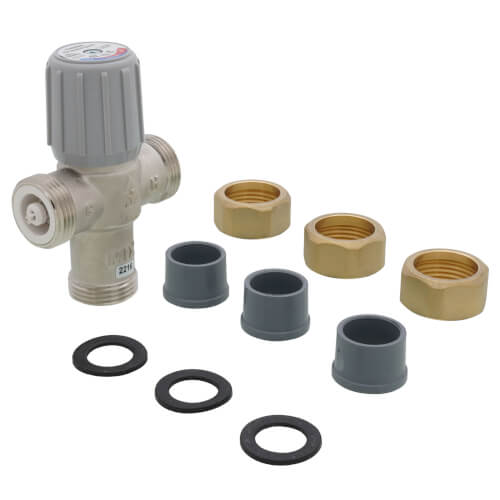

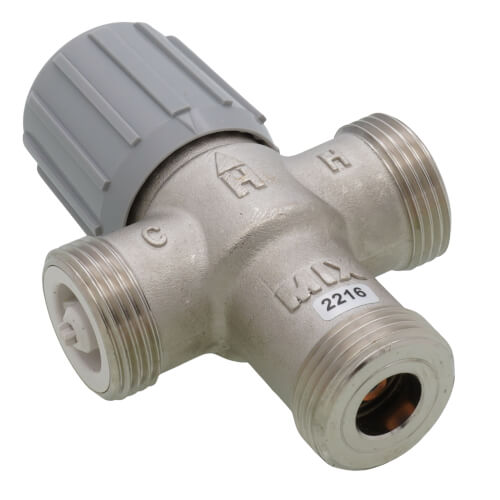

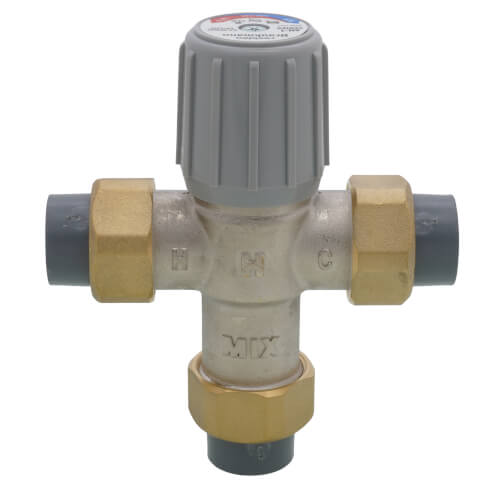

3/4" CPVC Union Mixing Valve (Lead Free)

**Lead Free

Overview
The Honeywell AM-1 series accurately adjusts, maintains and limits the hot water temperature to a desired setting selected by the user. In domestic water applications it offers scalding protection and bacteria growth control. By installing a Honeywell AM-1 mixing valve and raising water heater storage temperature setting and limiting mixed outlet water temperature to safe temperature more usable hot water is available. In heating applications it provides comfort and protects the equipment.

Features:

Dual purpose mixing or diverting valves

Constant water temperature under changing operating conditions

Reliable performance at minimum flow of 0.5 gpm

Proportional valve (simultaneous control of hot and cold water)

Temperature limit at any point

Flow reduction in seconds if cold water supply is interrupted

Nickel-plated brass construction, EPDM O-rings

High performance thermoplastic proportioning shuttle

Straight through design (hot and cold at the same level)

Max. pressure 150 psi (1034 kPa)

Max temperature 212 F (100 C)

Designed for easy maintenance and element replacement. Teflon coating of internal valve components to prevent mineral build-up and extend life.

Tamper resistent design

Valve trapping not required

AM-1 Union STD & C and AM1070 Models include check valves on both hot and cold ports

ASSE, CSA and IAPMO listed

U.S. Patent No. 6,079,625
