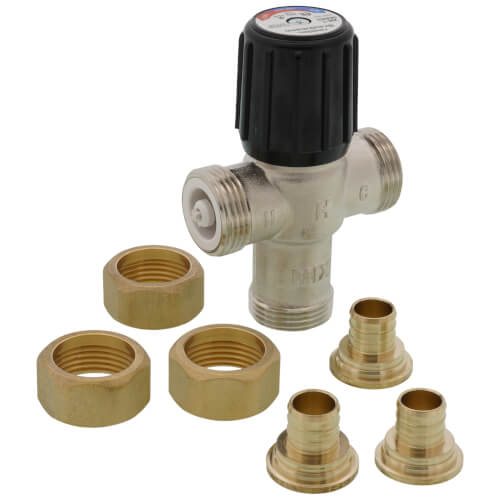

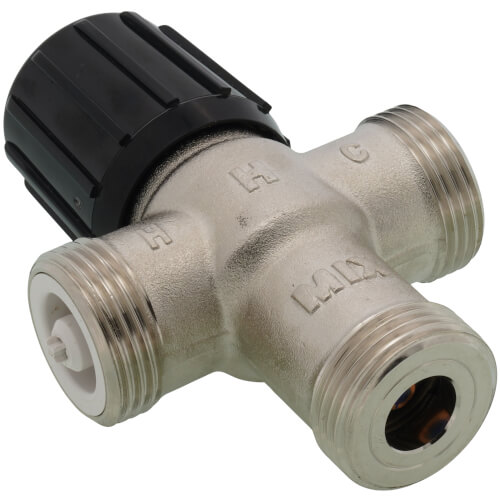

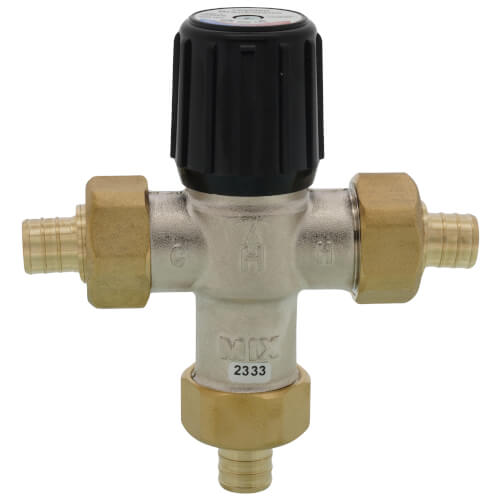

3/4" Union PEX Lead Free Mixing Valve (70-145F)
AM101-UPEX-1LF 3/4" Union PEX Lead Free Mixing Valve (70-145F)



Free Shipping This item ships free
Need replacement parts for this unit?
Product Features
- Features dual purpose mixing or diverting values
- Offers constant water temperature under changing operating conditions
- Temperature is limited at any point and if cold water supply is interrupted, flow reduction occurs in seconds
- Provides reliable performance at minimum flow of 05 gpm and proportional valve for simultaneous control of hot and cold
- Maximum pressure 150 psi and maximum temperature of 212 F (100 C)
- Tamper-resistant design with nickel-plated brass construction and EPDM O-rings
- Designed for easy maintenance and Teflon coating prevents mineral build-up and extends life
- Typical Applications: Domestic water, nursing homes, public facilities, automatic faucets, radiant floor heating, space heating, heat pump systems, combo systems, solar hot water, greenhouses, industrial applications, photo processing
Max Temp (F): |
145°F |
Min Temp (F): |
70°F |
Connection Method: |
PEX |
Connection Type: |
PEX Crimp x PEX Crimp |
Size: |
3/4" |
Flow Capacity (Cv): |
3.9 |
Type: |
Mixing Valve |
Lead Free: |
Yes |
Application: |
Point of Source |
Standards Met: |
ASSE 1017 |
Temperature Range (F): |
70°F - 145°F |
