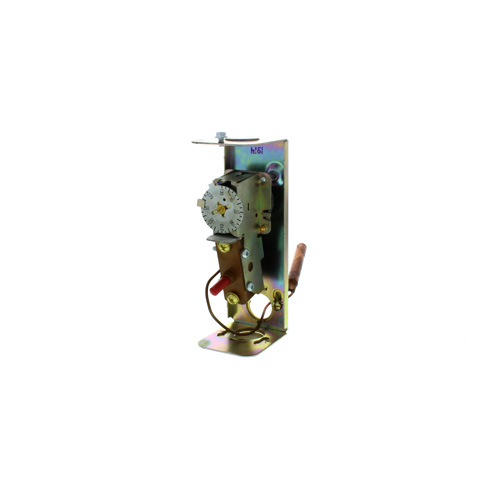

High Limit Aquastat, 130-270-Degree (F) range, Manual Reset, L4006E1067
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$257.23 each
In Stock
Get 20 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
0.25 A @ 0.25 to 12 Vdc, 5.1A @ 240 Vac, 8A @ 120 Vac
Manual Reset
Contacts Break on Temp Rise, SPST
Horizontal, Vertical
130°F to 270°F
5-5/8"
Description
–
The Honeywell L4006E1067 is temperature limiting aquastat controller that is manually reset. It is designed for high limit applications and has a temperature range of 130 to 270 degrees F. It is used for controlling the temperature in boilers, storage tanks and other hydronic applications where control of liquid temperature is desired.
Includes:
Features:
Includes:
- Heat-conductive compound; Stop factory-set at 250 F (121 C);
Features:
- Totally enclosed Micro Switch snap-acting switches operate on temperature rise to setpoint.
- Visible control point scale and external adjustment screw permit easy setting.
- Horizontal or vertical insertion of the sensing element.
- Direct or well immersion of the sensing element.
- Models available for strap-on mounting.
- Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
- Select models have wells.
- UL limit rated device.
Specs
–
| Application: | Manual Reset High Limit |
|---|---|
| Bulb Size: | 3/8" x 2-7/8" |
| Capillary Length: | 3" |
| Switch Action: | Contacts Break on Temp Rise SPST |
| Well Spud Size: | 1/2" NPT |
| Temperature Range (F): | 130°F to 270°F |
| Electrical Rating: | 0.25 A @ 0.25 to 12 Vdc 5.1A @ 240 Vac 8A @ 120 Vac |
| Electrical Ratings (ALR): | 48A @ 120 Vac 30.6A @ 240 Vac |
| Max Ambient Temp (°F): | 150°F |
| Height: | 5-5/8" |
| Width: | 2" |
| Depth (Inches): | 2-1/8" |
| Well Included: | No |
| Mount: | Horizontal Vertical |
| Thread Type: | Male |
| Differential: | Manual Reset |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 5 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
Reliable source
OEM quality product ( or better) on time at fair price
Chilldis
ND
5 years ago
Verified Buyer
Was this review helpful to you?
Worked like a charm
Product was exactly as seen on the website. I was able to install it and have my machine work properly.
Mike
DC
7 years ago
Verified Buyer
Was this review helpful to you?
Quality product
Ease of installation, and <24hours deliver
Tom
East Hampton, NY
11 years ago
Verified Buyer
Was this review helpful to you?
great just as described
im using this on a condensing boiler.
compact design
Dav
NY
11 years ago
Verified Buyer
Was this review helpful to you?
"I would buy this product again and again"
Product works great, just as expected
Richy65
Staten Island, NY
11 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: i own one of these on my boiler and i am trying to trouble shoot a problem where my boiler will not allow hot water to flow heat my house---how can we test to see if this device has failed an needs to be replaced? my reset button looks crooked (similarly crooked to the one shown in this display picture here) Is that normal? Also, when i push in the reset button, there is no horizontal movement possible on that button/no movement....i can't seem to "reset" or make use of the reset button. Is there a troubleshooting flow chart for any of these issues? or do i need a new one....and if so, would i need to replace the well too or use the existing? thank you
Asked by jeremy 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffWe have no one here that can trouble shoot units.
Was this review helpful to you?
Q: Does this come with a well?
Asked by Tom 12 years ago
Add your answer
-
No Sent from my U.S. Cellular BlackBerry® smartphone
Was this review helpful to you?
- Mike
No well is provided but is sold separately.
Was this review helpful to you?
Q: Does this model allow for strap on application?
Asked by Kevin 12 years ago
Add your answer
-
In a word, NO. This is an insertion type and should be used with an insertion well. The strap on model is similar but has a block and foam cushion assembly on the back along with a couple clamps. Far better to use proper part rather than a kluge deal.
Was this review helpful to you?
