$164.53 each
In Stock
Get 19 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (6)
This item replaces: VR8205M2823T, 722-079
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas, Propane
1/2", 1/2" NPT
1/2"
200000 BTU Capacity
24V
Intermittent Pilot

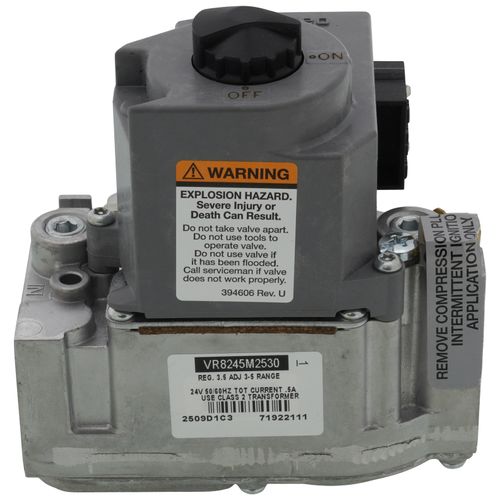

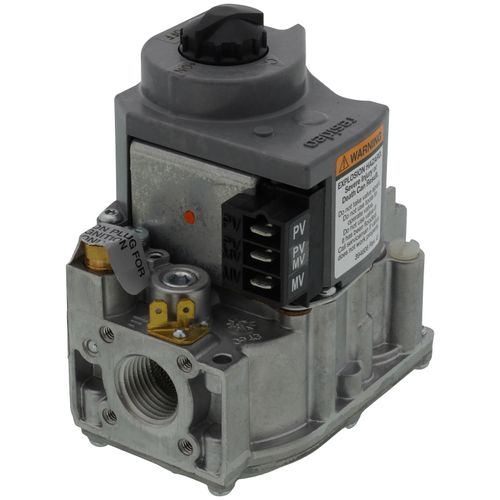

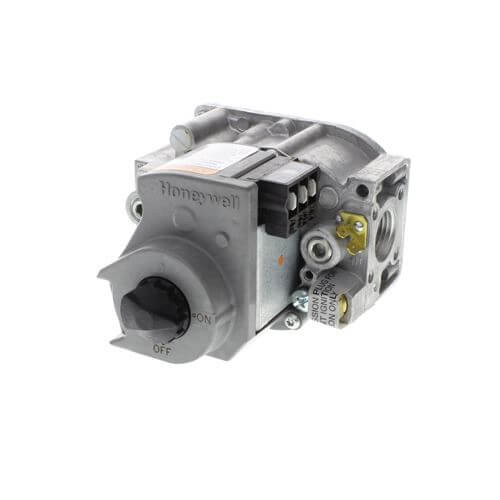

Description
–
Used in gas-fired appliances with capacities up to 150 cu ft/hour at 1 inch wc pressure drop (4.2 cu m/hour at 0.25 kPa) for natural gas. The VR8245M will operate with a direct spark (DSI), hot surface (HSI) or intermittent pilot ignition. The control includes a manual valve, two automatic operators, a pressure regulator, pilot adjustment, pilot plug and ignition adapter.

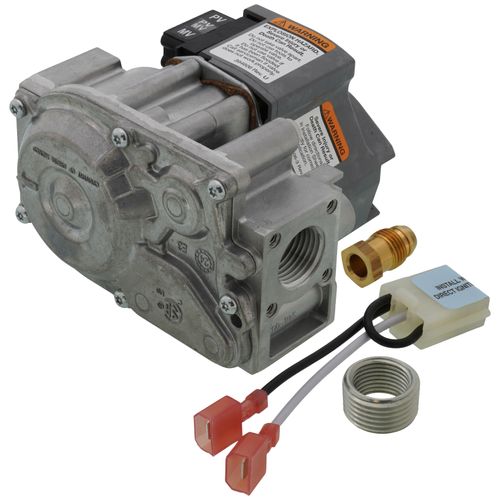

Includes: Natural to LP Conversion Kit, one 1/2" x 3/8" reducer bushing
Specifications:
Includes: Natural to LP Conversion Kit, one 1/2" x 3/8" reducer bushing
Specifications:
- Description: 24 Vac Dual Intermittent Pilot Gas Valve with 1/2 in. x 1/2 in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting
- Type: Single Stage
- Ignition Type: Intermittent Pilot
- Type of Gas: Natural or LP
- Inlet/Outlet Size (in.): 1/2 in. x 1/2 in.
- Body Pattern: Straight-through
- Opening Characteristics: Standard
- Capacity @ 1 in. p.d.: 150,000 BTU/hr
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Pressure Regulator Setting (psi): 3.5 in. wc
- Pressure Regulator Setting (kPa): 0.9 kPa
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz; 50 Hz
- Temperature Range (F): -40 F to +175 F
- Temperature Range (C): -40 C to +79 C
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
Specs
–
| Fuel Type: | Natural Gas Propane |
|---|---|
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Capacity (BTU): | 200000 |
| Inlet Size: | 1/2" 1/2" NPT |
| Outlet Size: | 1/2" |
| Ignition Type: | Intermittent Pilot |
