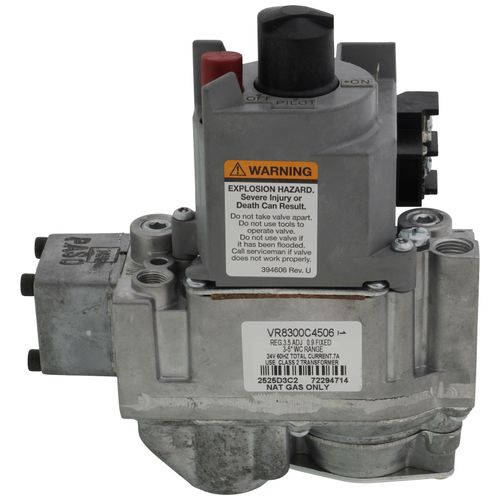

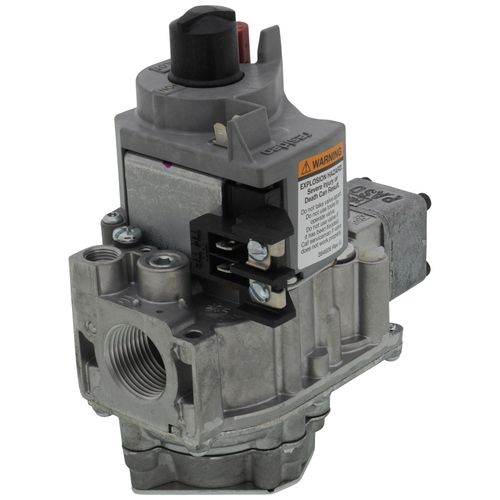

Step Opening Dual Standing Pilot Gas Valve - 3/4" x 3/4", VR8300C4506
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$302.73 each
In Stock
Get 21 Mon, Jun 29
Order by 6PM, receive Monday
MANUALS (3)
This item replaces: 1149171, 100110159
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
3/4"
3/4"
200000 BTU Capacity
24V
Standing Pilot
Description
–
24 Vac Dual Standing Pilot Gas Valve with 3/4 in. x 3/4 in. inlet\outlet, step opening and Full Rate: 3.5 in. wc; Step Setting: 0.9 in. wc pressure regulator setting
Features
Product Specifications
Features
- Combination gas control for use in 24 Vac, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.
- Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment.
- Compact size.
- Provide two automatic valves.
- Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
- Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
- Meet codes requiring dual safety shutoff.
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
- LITE-RITE (OFF-PILOT-ON) lighting sequence.
- All adjustments, wiring connections and pilot outlet are accessible from top of control.
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
- Compatible with ECO connector.
Product Specifications
- Type: Single Stage
Ignition Type: Standing Pilot
Type of Gas: Natural
Inlet/Outlet Size (in.): 3/4 in. x 3/4 in.
Body Pattern: Straight through with integral tapping; with flange
Opening Characteristics (standard, step): Step Opening
Capacity @ 1 in. p.d.: 200,000 BTU/hr; 30,000 BTU/hr minimum
Pressure Ratings: ½ psi, or 3.5 kPa
Pressure Regulator Setting(psi): Full Rate: 3.5 in. wc; Step Setting: 0.9 in. wc
Pressure Regulator Setting(kPa): Full Rate: 0.87 kPa; Step Setting: 0.22 kPa
Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
Pressure Tapping: 1/8 in. NPT with plug
Electrical Connections: 1/4 in. quick-connect male terminals
Electrical Ratings: 24 Vac
Frequency: 60 Hz
Anticipator Setting: 0.7 A
Temperature Range: 0° to 175°F, or -18° to +79°C
Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
Dimensions (in.): 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep

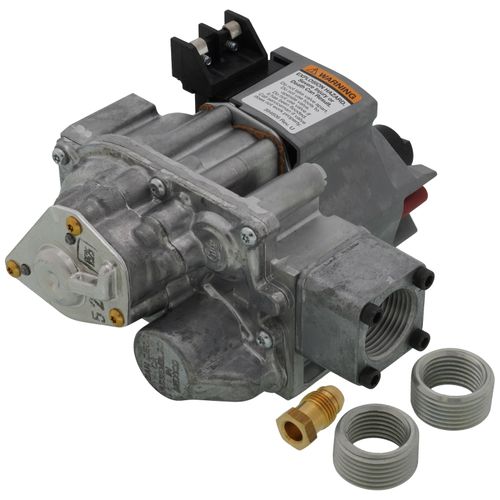

Includes: Two 3/4 x 1/2 in. reducer bushings
Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025006.
Approvals, Canadian Gas Association: CGA Design Certified: File No. L2025006.
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Body Pattern: | Straight-Through with Flange |
| Voltage: | 24V |
| Capacity (BTU): | 200000 |
| Inlet Size: | 3/4" |
| Outlet Size: | 3/4" |
| Ignition Type: | Standing Pilot |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.83 out of 6 reviews
80% would recommend this product
5 star
83%
4 star
17%
3 star
0%
2 star
0%
1 star
0%
Showing 1-6 of 6 reviews
Yes
Exelent
Marvin
Va
2 years ago
Verified Buyer
Was this review helpful to you?
Good product
Replacement part worked fine.
HVACGURU
MD
2 years ago
Verified Buyer
Was this review helpful to you?
We replaced 18 yrs the Hamilton engineering water heater.
This is the right part for our water heater.
john
Oregon
9 years ago
Verified Buyer
Was this review helpful to you?
outstanding service
Product was exactly what I needed and the service people at SupplyHouse were outstanding in getting it to me ASAP.
bill
grosse pointe, Mi
12 years ago
Verified Buyer
Was this review helpful to you?
easy replacement Gas Valve
Used on a 3 module Hydro Therm Gas boiler
Ron
Littleton, Co
15 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
The banger
This product works well its a step opening gas valve what that means is upon a call for heat the solenoid opens the valve. Gas comes through at a lower flow usually 1 inch. after about 2 seconds the main valve opens at about 3 inches of gas volume. It functions this way so you don't have a loud gas ignition noise from a main gas ignition. The only draw back of this valve is the initial actuation is very loud and resonates through the gas pipes. Its a drawback of a solenoid of this design. I used in my home and the price was right. I know what the noise is and it doesn't bother me. To install in a customers home will be a sure callback.
Merchant response
15 years ago
Solenoid valves are gear-driven motorized valves that will make some minor noise. The sounds should only last for a few seconds as the valve opens and closes, and can be masked by insulation and a well-positioned boiler room.
Sparkye
Chicago
15 years ago
Verified Buyer
Was this review helpful to you?
