Description

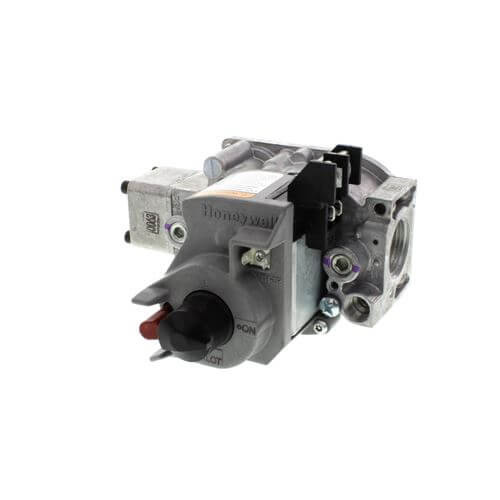

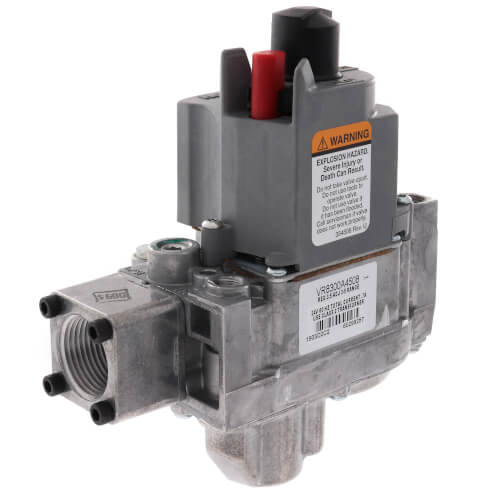

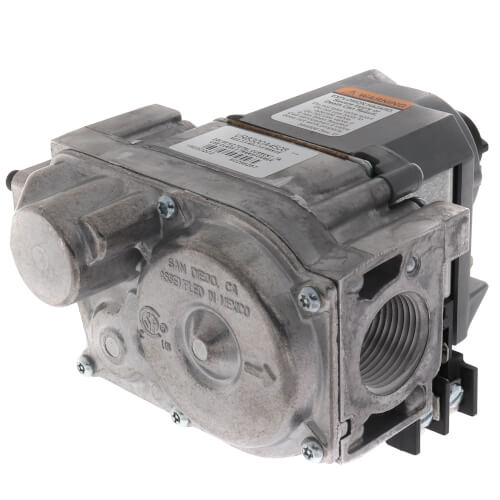

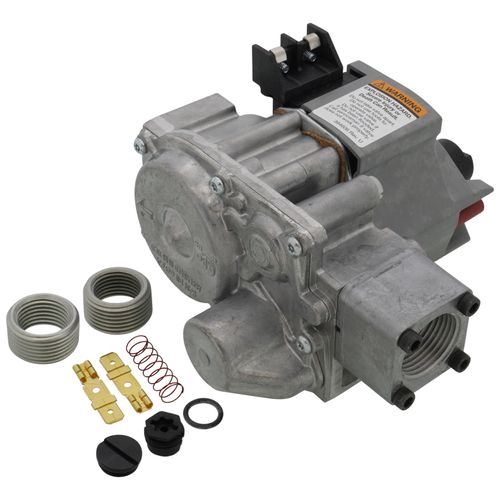

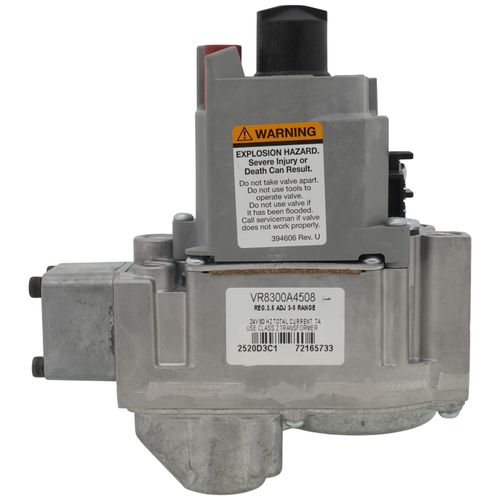

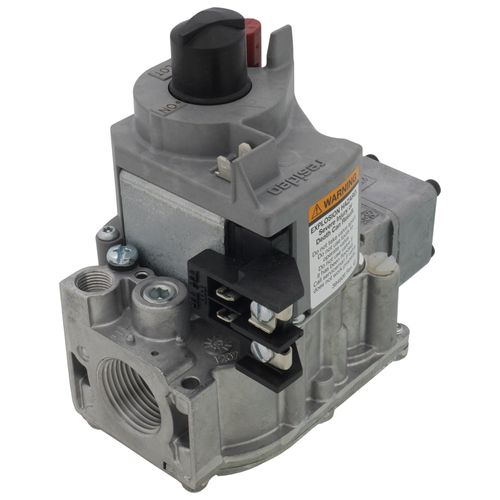

The VR8300 continuous pilot dual automatic valve combination gas controls are used in gas-fired, standing pilot appliances. They include safety shutoff, a manual valve, two automatic operators, and a pressure regulator.

Features:
  • Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
  • Compact size
  • Provide two automatic valves
  • Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
  • Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted
  • Meets codes requiring dual safety shutoff
  • All adjustments, wiring connections and pilot outlet are accessible from top of control
  • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
  • Compatible with ECO connector
  • LITE-RITE (OFF-PILOT-ON) lighting sequence
Read more
Specs
Fuel Type:
Natural Gas
Gas Type:
Natural Gas
Body Pattern:
Straight-Through with Flange
Voltage:
24v
Capacity (BTU):
200000
Inlet Size:
3/4"
Outlet Size:
3/4"
Ignition Type:
Standing Pilot
×
