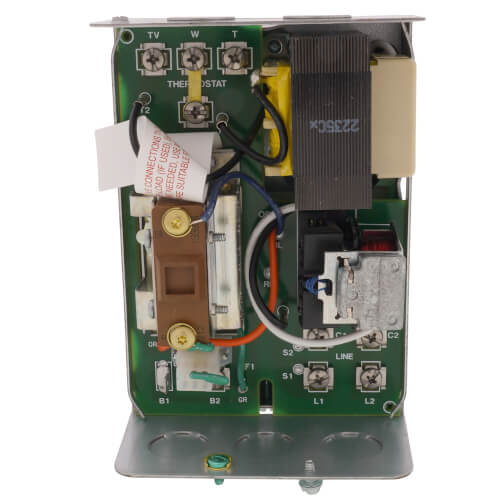

High Limit Vertical Mount Aquastat Relay, 15-Degree(F) differential
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$289.12 each
In Stock
Get 260 Mon, Apr 3
More Available
Order by 4PM, receive Monday
MANUALS (2)
This item replaces: L8148E1257/U
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
0.25 A @ 0.25 to 12 Vdc, Circulator: 3.7 A @ 240 Vac, Circulator: 7.4 A @ 120 Vac, Burner: 7.4 A @ 120 Vac, Burner: 3.7 A @ 240 Vac, Burner: 0.8 A max @ 24 Vac
Fixed
SPST
Vertical
180°F to 240°F
6-1/8"
Description
–
They Honeywell Aquastat Relay (L8148E1265) provides total convenience and control for a range of installations. This is an immersion-type controller that combines high limit protection with switching relay control of the burner and circulator motors. The Honeywell L8148E1265 Aquastat Immersion Controller Relay is available with horizontal and vertical mounting cases. SupplyHouse.com is your one-stop shop for all Honeywell boiler controls, Aquastat models included.
Features:
Features:
- High limit opens burner circuit only.
- Includes accessory terminals for adding a remote low limit controller.
- Case available for horizontal or vertical mounting.
- Requires a 24 Vac thermostat with heat anticipator set at 0.2A.
Specs
–
| Application: | High Limit |
|---|---|
| Switch Action: | SPST |
| Electrical Rating: | 0.25 A @ 0.25 to 12 Vdc Circulator: 3.7 A @ 240 Vac Circulator: 7.4 A @ 120 Vac Burner: 7.4 A @ 120 Vac Burner: 3.7 A @ 240 Vac Burner: 0.8 A max @ 24 Vac |
| Electrical Ratings (ALR): | Circulator: 44.4 A @ 120 Vac Circulator: 22.2 A @ 240 Vac Burner: 44.4 A @ 120 Vac Burner: 22.2 A @ 240 Vac |
| Temperature Range (F): | 180°F to 240°F |
| Max Temp Differential: | 15°F |
| Differential: | Fixed |
| Height: | 6-1/8" |
| Width: | 4-3/8" |
| Depth (Inches): | 3-1/8" |
| Operating Humidity: | 0% to 95% (non-condensing) |
| Mount: | Vertical |
| Max Ambient Temp (°F): | 77F with 1.4A 24V Load 150F with 1.2A 24V Load |
| Connection Type: | Quick-Connect |
| Capillary Length: | 4-1/2" |
| Anticipator Rating: | 0.2 A |
| Voltage: | 120v |
| Frequency: | 60 Hz |
| Max Pressure (PSI): | 255 (Immersion Well) |
