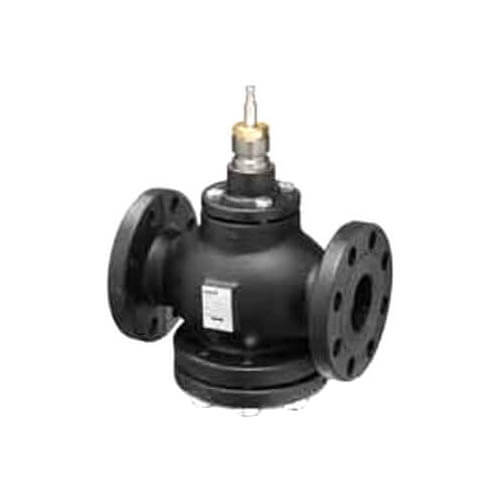

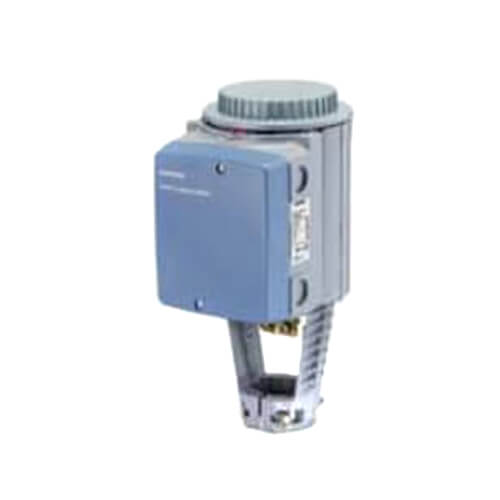

3" 2-Way N/C Stainless Steel Equal Percentage Valve Actuator, Flanged, 3/4" Stroke (100 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2,556.43 each
Out of Stock
Get it Tue, Oct 17 - Tue, Oct 24
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
100 Cv
Flanged x Flanged Connection
2-Way
3" Connection
Normally Closed
Stainless Steel
Description
–
3" 2-Way N/C Stainless Steel Equal Percentage Valve Actuator, Flanged, 3/4" Stroke (100 Cv)
Features:
Applications:
The Flowrite Three-way Globe Valves are recommended for water and glycol solutions up to 50 percent. Additional specifications include the following:
Features:
- Valve flange face-to-face dimensions meet ISA 75.03 standards
- Direct-coupled, universal bonnet
- Equal percentage (NC port) and linear (NO port) flow characteristics
- Bronze or stainless steel trim
- Greater than 100:1 rangeability
- 2-1/2 to 3-inch are available with a 3/4-inch stroke
- 4-, 5-, and 6-inch are available with a 1-1/2-inch stroke
- ANSI Leakage Class IV (0.01% of Cv)
- Cartridge-type packing for easy service
Applications:
The Flowrite Three-way Globe Valves are recommended for water and glycol solutions up to 50 percent. Additional specifications include the following:
- Water inlet pressures up to ANSI 125 and ANSI 250 cast-iron body rating
- Water modulating differential pressure up to 25 psi (172 kPa) for bronze trim and 50 psi (345 kPa) for stainless steel trim
Note: Image may not be actual representation of item.
Specs
–
| Product Type: | Valve Actuator |
|---|---|
| Body Pattern: | 2-Way |
| Flow Capacity (Cv): | 100 |
| Connection Size: | 3" |
| Connection Type: | Flanged x Flanged |
| Position: | Normally Closed |
| Material: | Stainless Steel |
| Stroke: | 3/4" |
| Control Signal: | 0 to 10 VDC 4 to 20 mA |
| Temperature Range (F): | 35°F to 180°F |
| Fail Safe Mode: | Spring Return |
| Power Consumption: | 18 VA |
