Description
Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

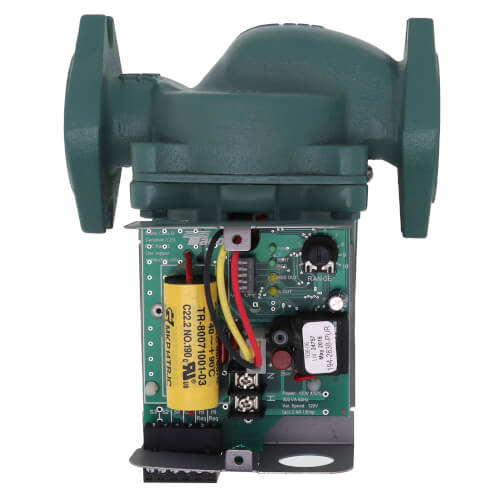

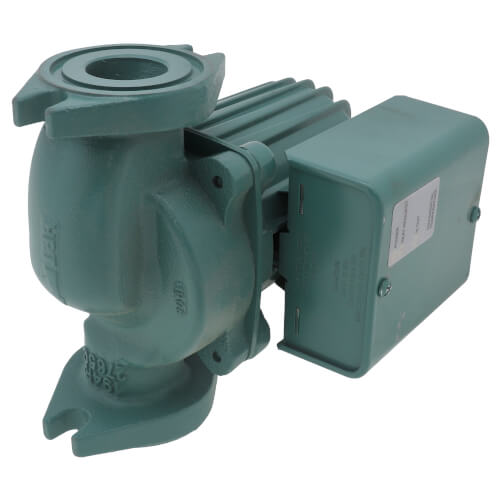

Taco Variable Speed Delta-T Circulator's all-in-one design combines a microprocessor based variable speed differential controller with the reliability and convenience of Taco's 00 Cartridge Circulators. Simply dial in the design Delta-T of the system or zone (from 5°F - 50°F) and then sit back and watch the circulator automatically adjust its performance to match the systems ideal BTU/hr output, while conserving energy and eliminating velocity noise.

Features:
  • All-In-One-Pump & Control
  • Easy to Install
  • UL Approved
  • Snap-In-PC Board, replaceable

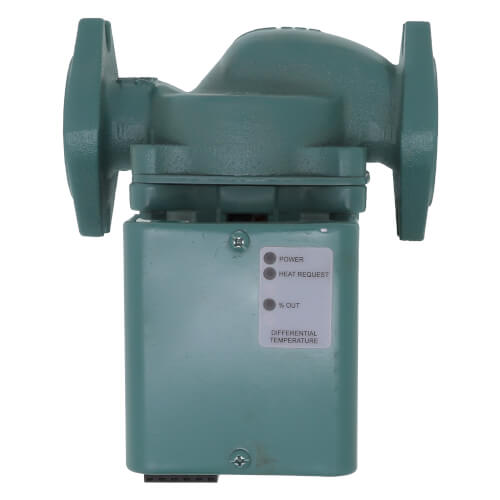

  • LED Status Panel
  • Fuse Protected
  • Plug-In Low Voltage Wiring Terminal


Replacement Parts List:
Casing O-Ring: 0010-008RP
Flange Gasket Set: 007-007RP
Cartridge Assembly Complete: 0010-021RP
Read more
Specs
Material:
Cast Iron
Amperage:
1.1
Application:
Heating
Voltage:
115v
Max Pressure (PSI):
125
Type:
Variable Speed Pump
Horse Power:
1/8
Connection Size:
3/4"
1-1/4"
1-1/2"
1"
Flow Range (GPM):
0-32
Max Flow (GPM):
32
Head Range (ft.):
0-10
Max Head (Ft):
10
Hertz:
60
Phase:
1
RPM:
3250
Temperature Range (F):
40° to 230°F
Connection Type:
Flanged
Warranty:
3-Year Warranty
×
