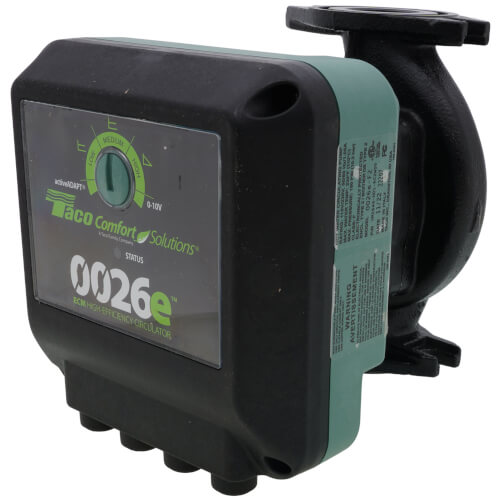

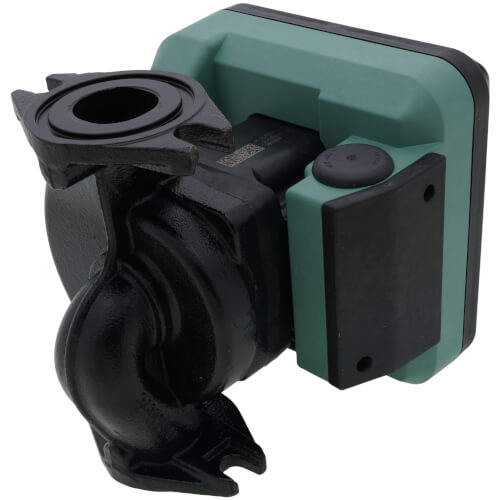

0026e ECM Cast Iron High-Efficiency Wet Rotator Circulator (115/208/230V)

The 0026e is a high-performance, variable speed, wet-rotor circulator with high-efficiency ECM permanent magnet technology. With 5 easy settings, its variable speed performance curves are equivalent to the Taco 0010, 0011, 0012, 0012 3-Speed & 0014. Ideal for large residential and light commercial hydronic heating, chilled water cooling and domestic hot water systems. The 0026e reduces power consumption by up to 85% compared to equivalent AC permanent split capacitor circulators. With a maximum of 26 feet of head and 44 gpm, it is available in either Cast Iron or NSF certified Stainless Steel.

Features:

• Replaces all single speed and 3-speed circulators in its class

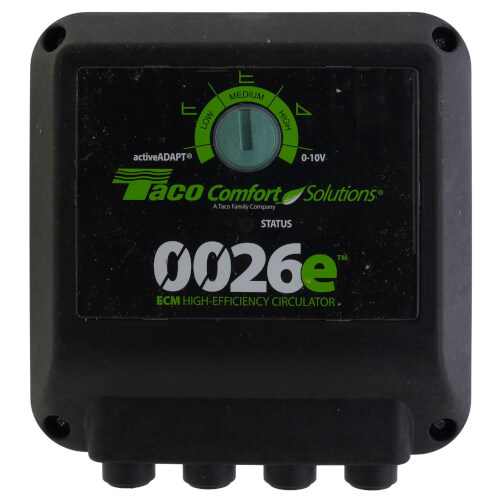

• Rotatable control cover to simplify installation
• BIO Barrier protects the pump from system contaminants
• SureStart automatic unblocking and air purging mode
• Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
• Nut-grabber feature on flanges for easier fit-up
• Dual electrical knockouts and removable quick-connect terminal strip for easy wiring
• Double insulated
• Whisper quiet operation

Specifications:

• Max. Shut-off Head: 26 ft
• Max. Flow: 44 gpm
• Max. Pressure: 150 psi (10.3 bar)
• Max. Temp: 230° F (110°C)
• Min. Temp: 14°F (-10°C)
• Voltage: 115/208/230V, 50/60Hz Single phase
• Operating Power Range: 10 -125W
• Max. AMP: 1.05A
• Flange-to-flange: 6-1/2"

Applications:

• Closed Loop Hydronic Heating
• Hydronic Systems with Zone Valves
• Zoning with Circulators
• Hydronic Heating & Cooling TRV Systems
• DHW recirculation (Stainless Steel)
• Constant Flow Applications
